PE8700

Overview

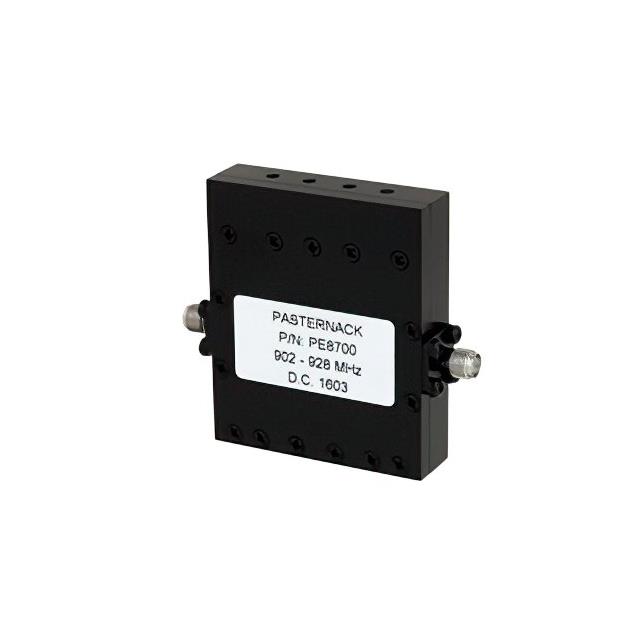

The PE8700 is a four-section bandpass RF filter manufactured by Pasternack, designed for operation within the 902 MHz to 928 MHz frequency range. It features SMA female connectors and provides a passband width of 26 MHz. This component is specifically engineered for Industrial, Scientific, and Medical (ISM) applications as well as Radio Frequency Identification (RFID) systems. The unit utilizes a modular construction with standard mounting interfaces.

Feature Summary

• Four-section bandpass filter architecture
• SMA female connector interface
• Optimized for ISM and RFID bands

Applications

• Industrial, Scientific, and Medical (ISM) equipment
• Radio Frequency Identification (RFID) systems
• General RF signal conditioning

Procurement Notes

Verify the specific datasheet revision when ordering, as Pasternack may update internal specifications without changing the base model number. Confirm that the SMA female connector type matches your system requirements. Ensure the 902-928 MHz operational range aligns with your target application frequency before procurement.

Selection Notes

Select this component when a narrow 26 MHz bandwidth is required within the 902-928 MHz spectrum. The four-section design offers improved selectivity compared to simpler filters. Verify that the physical dimensions and SMA interface are compatible with your existing assembly constraints.

Part Context

This part belongs to Pasternack's broad portfolio of RF, microwave, and millimeter-wave components. It is categorized under signal conditioning devices, specifically bandpass filters. The PE8700 serves as a specialized solution for filtering noise in designated industrial and identification frequency bands.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
