PE8701

Overview

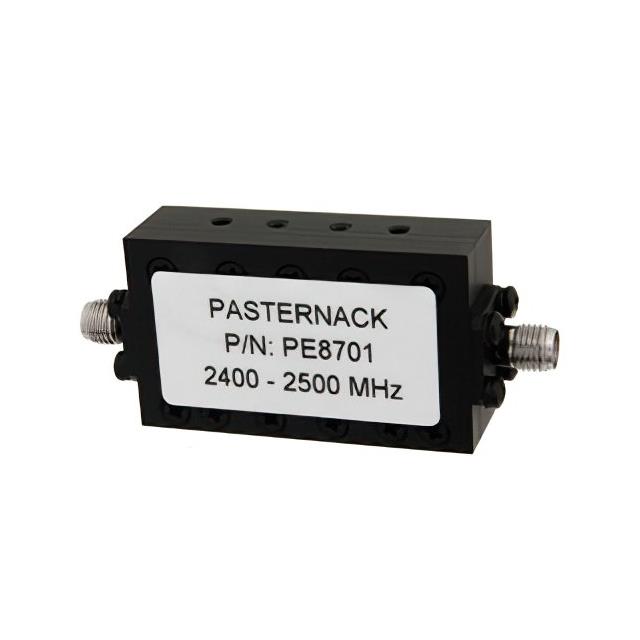

The PE8701 is a four-section bandpass filter manufactured by Pasternack. It operates within the frequency range of 2.4 GHz to 2.5 GHz, providing a passband of 100 MHz. The device is equipped with SMA female connectors for integration into RF systems. This component is designed for applications requiring precise signal filtering in the ISM, WiFi, Bluetooth, and Zigbee bands.

Feature Summary

• Four-section bandpass filter design
• SMA female connector interface
• Operating frequency range from 2.4 GHz to 2.5 GHz

Applications

• ISM band applications
• WiFi systems
• Bluetooth devices
• Zigbee networks

Procurement Notes

Verify the specific connector type and frequency specifications against project requirements before procurement. Ensure compatibility with existing SMA interfaces. Confirm that the 100 MHz passband aligns with the intended signal bandwidth needs for the target application.

Selection Notes

Select this model when a narrow 100 MHz passband is required within the 2.4-2.5 GHz spectrum. The SMA female connectors facilitate easy integration into standard test equipment and RF modules. Consider the four-section design for improved selectivity compared to simpler filter structures.

Part Context

This component belongs to Pasternack's line of RF filters, which offer various frequency capabilities from DC to 5.9 GHz. The PE8701 specifically targets the 2.4 GHz ISM band, providing a specialized solution for wireless communication protocols like WiFi and Bluetooth that operate in this frequency range.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific component.

FAQ

What is the operating frequency range of the PE8701?

The PE8701 operates from 2.4 GHz to 2.5 GHz.

What type of connectors does the PE8701 use?

It uses SMA female connectors.
