PE8701A

Overview

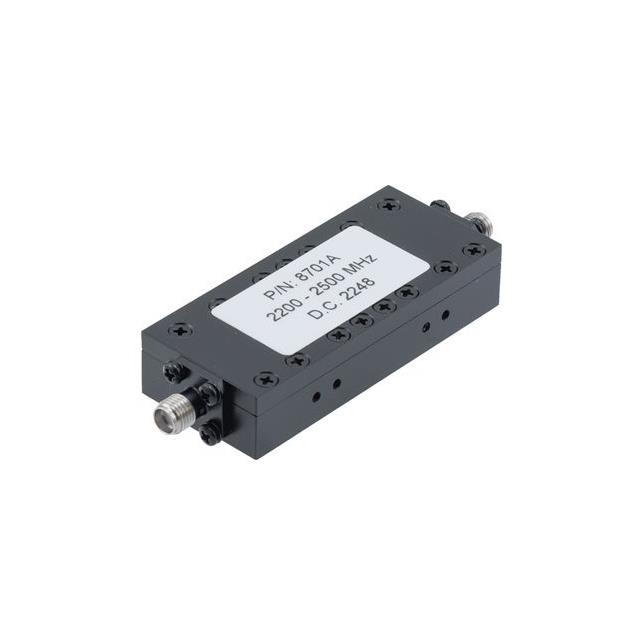

The Pasternack PE8701A is an eight-section bandpass filter designed for signal conditioning applications. It operates within a frequency range of 2.2 GHz to 2.5 GHz, featuring a center frequency of 2.35 GHz and a passband width of 300 MHz. The component utilizes SMA female connectors and employs a combline design suitable for S-band and C-band operations.

Feature Summary

• Eight-section bandpass filter architecture
• Combline design structure
• SMA female connector interface

Applications

• S-band communication systems
• C-band communication systems
• Signal conditioning circuits

Procurement Notes

Verify the specific datasheet version for precise insertion loss and rejection specifications before integration. Confirm that the SMA connector type matches your system requirements. Ensure environmental ratings align with your operational conditions. Cross-reference the part number to avoid confusion with similar models in the series.

Selection Notes

Select this model when an eight-section response is required for narrowband filtering between 2.2 GHz and 2.5 GHz. The combline design offers stability for S-band and C-band use. Verify connector compatibility with existing SMA infrastructure. Consider physical size constraints as it is a discrete component rather than a module.

Part Context

This component belongs to Pasternack's RF coaxial filters category. It is part of a broader lineup of signal conditioning products including amplifiers and cable assemblies. The manufacturer specializes in radio frequency, microwave, and millimeter wave components for various industrial and communication sectors.

Replacement Considerations

Check for direct substitutes within the PE87 series. Verify if other section counts or frequency ranges meet your needs. Ensure connector polarity and gender remain compatible with your assembly.
