Product Detailed Parameters
- Description：RF FILTER BANDPASS 5.8GHZ MODULE
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency：5.8GHz Center
- Bandwidth：150MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.902" L x 0.701" W (48.30mm x 17.80mm)
- Height (Max)：0.531" (13.50mm)
Download product information
Overview

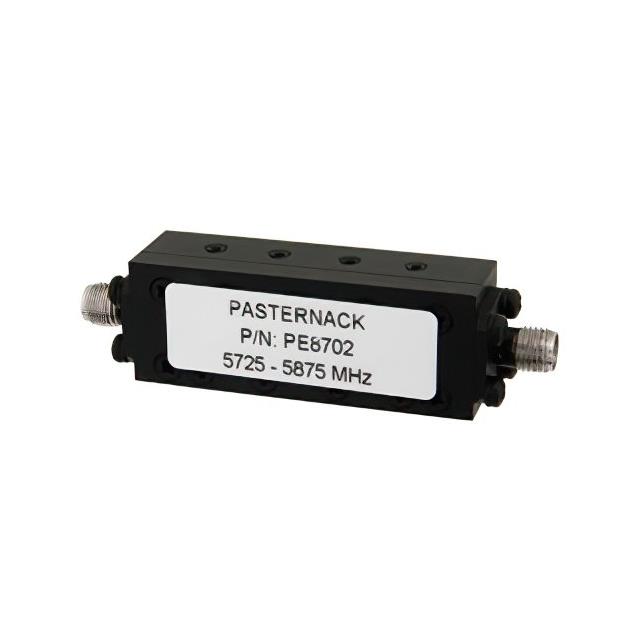

The PE8702 is a four-section bandpass filter manufactured by Pasternack, designed for ISM and WiFi frequency bands. It operates within a range of 5.725 GHz to 5.875 GHz, providing a passband bandwidth of 150 MHz with a center frequency of approximately 5.8 GHz. The component features SMA female connectors and is housed in a module package. It exhibits an insertion loss of 1 dB and supports an input power handling capacity of 5 W.
Feature Summary
- Four-section bandpass filter design optimized for specific frequency ranges
- Integrated SMA female connectors for standard interface compatibility
- Low insertion loss characteristics ensuring efficient signal transmission
- Robust module construction suitable for RF applications
Applications
- ISM band signal filtering
- WiFi band signal processing
- RF communication systems requiring specific frequency selection
Procurement Notes
Verify the exact operating frequency range and connector type against the official datasheet before integration. Confirm that the SMA female interface matches your system requirements. Ensure the 5 W power handling capability exceeds your application's maximum input power to prevent damage. Check for any specific environmental ratings if used in harsh conditions.
Selection Notes
Select this component when a narrow 150 MHz bandwidth is required around the 5.8 GHz center frequency. It is appropriate for designs needing low insertion loss and high power handling in a compact module form factor. Ensure compatibility with SMA female ports on both input and output sides of the circuit.
Part Context
This part belongs to Pasternack's extensive portfolio of RF components, specifically targeting ISM and WiFi applications. It is categorized under RF filters and is part of a broader range of microwave and millimeter-wave products supplied by the manufacturer.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs carefully if considering alternatives.
FAQ
What is the center frequency of the PE8702 filter?
The center frequency is approximately 5.8 GHz.
Does the PE8702 support high input power?
Yes, it supports an input power handling capacity of 5 W.
