PE8705

Overview

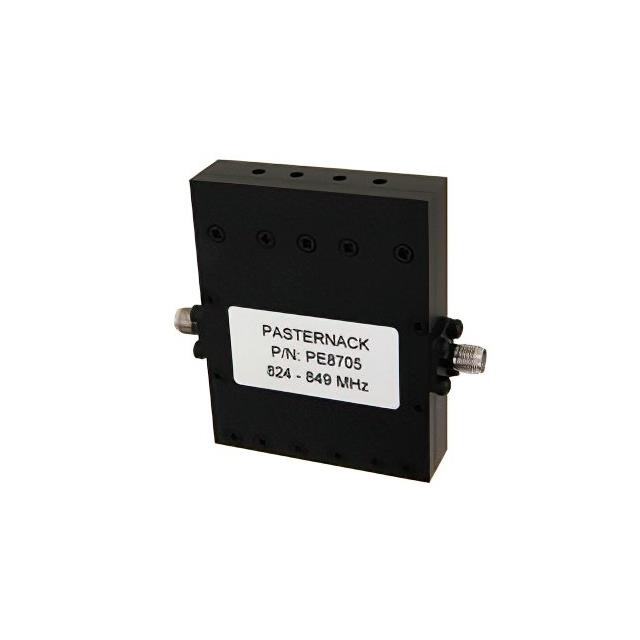

The Pasternack PE8705 is a four-section bandpass filter designed for RF applications. It operates within a frequency range of 824 MHz to 849 MHz, featuring a center frequency of 836.5 MHz and a bandwidth of 25 MHz. The device utilizes SMA female connectors and exhibits an insertion loss of 1.5 dB.

Feature Summary

• Four-section bandpass filter design
• SMA female connector interface
• Operates from 824 MHz to 849 MHz

Applications

• RF signal filtering
• Microwave power systems
• Communication equipment

Procurement Notes

Verify the exact part number against official Pasternack documentation to ensure compatibility with specific system requirements. Confirm connector type and frequency specifications match the intended application before procurement.

Selection Notes

Select this component when a narrow bandpass filter is required around 836.5 MHz. Ensure the system supports SMA female connections and can accommodate the specified insertion loss characteristics for optimal performance.

Part Context

This component belongs to the Pasternack RF Filters product family. It is specifically categorized under RF & Microwave Power solutions, providing specialized filtering capabilities for precise frequency selection in electronic circuits.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult official manufacturer resources for potential alternatives if this part is unavailable.

FAQ

What is the center frequency of the PE8705?

The center frequency is 836.5 MHz.

What type of connectors does the PE8705 use?

It uses SMA female connectors.
