PE8707

Overview

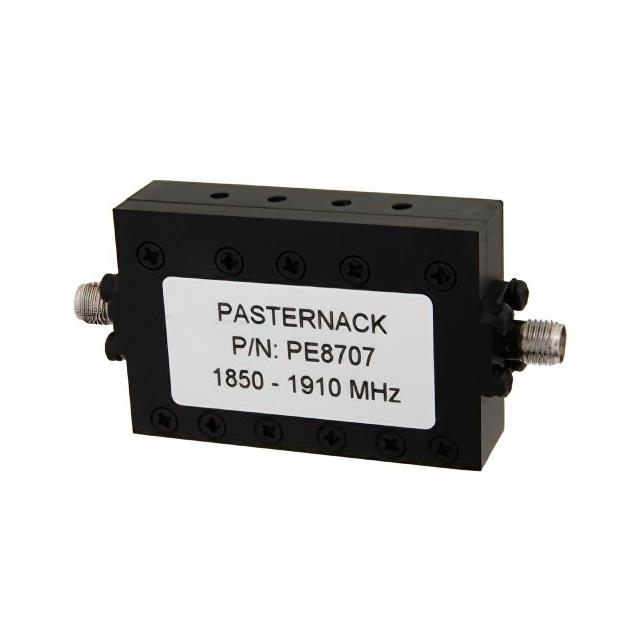

The Pasternack PE8707 is a four-section bandpass filter designed for RF applications. It features SMA female connectors and operates within a frequency range of 1.85 GHz to 1.91 GHz. The component provides a passband width of 60 MHz. Key electrical specifications include an insertion loss of 1.5 dB. The unit is constructed as a module with chassis mounting capabilities, ensuring stable integration into RF systems requiring precise signal filtering in the specified microwave frequency band.

Feature Summary

• Four-section design for enhanced selectivity
• SMA female connector interface
• Chassis mount configuration

Applications

• RF signal filtering
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the PE8707 to confirm exact mechanical dimensions and connector tolerances. Ensure compatibility with existing SMA interfaces in the target assembly. Cross-reference the manufacturer's documentation for any updates regarding material composition or environmental ratings prior to final procurement decisions.

Selection Notes

Select the PE8707 when a narrow 60 MHz bandwidth is required between 1.85 GHz and 1.91 GHz. The four-section architecture offers superior rejection characteristics compared to simpler designs. Consider the chassis mount form factor for fixed installations where physical stability and thermal management are priorities over flexible cabling solutions.

Part Context

This component belongs to Pasternack's line of RF bandpass filters. It is engineered for high-performance signal conditioning in microwave frequencies. The product utilizes standard SMA connectors to facilitate easy integration into existing RF test setups and communication hardware without requiring specialized adapter interfaces.

Replacement Considerations

Consult official Pasternack documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters due to potential differences in insertion loss, VSWR, and physical mounting requirements.
