PE8708

Overview

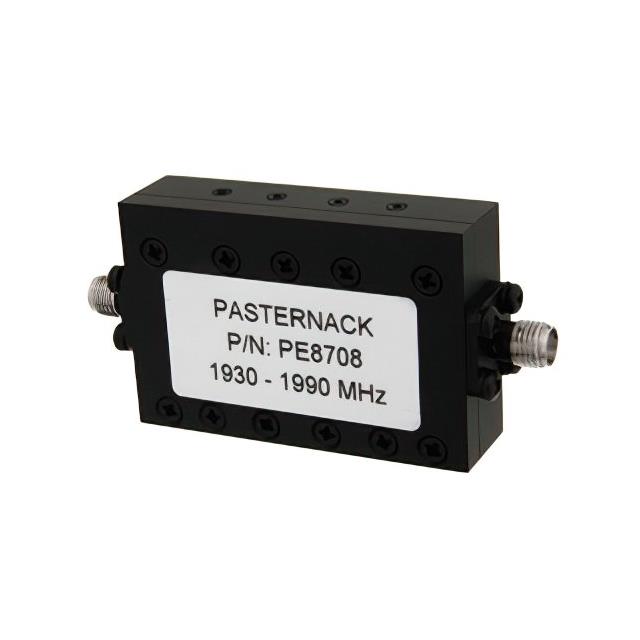

The Pasternack PE8708 is a four-section bandpass filter designed for RF signal conditioning. It features SMA female connectors and operates with a center frequency of 1.96 GHz. The component provides a bandwidth of 60 MHz, ensuring precise frequency selection within the specified range. Constructed as a discrete module, it utilizes standard SMA interfaces for integration into coaxial systems.

Feature Summary

• Four-section bandpass filter architecture
• SMA female connector interface
• 1.96 GHz center frequency operation

Applications

• RF signal conditioning
• Frequency selection in communication systems
• Bandpass filtering applications

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical dimensions prior to procurement. Ensure that the SMA female connector compatibility matches the system requirements. Confirm RoHS compliance status through official manufacturer documentation before finalizing purchase orders.

Selection Notes

Select this component when a four-section bandpass response is required at 1.96 GHz. The 60 MHz bandwidth defines the operational passband. Verify that the SMA female interface aligns with existing system cabling and connector standards to ensure proper physical integration.

Part Context

The PE8708 belongs to the Pasternack RF Coaxial Filters series. This family includes various bandpass filters with different frequency ranges and section counts. The PE8708 specifically targets applications requiring a 1.96 GHz center frequency with a 60 MHz bandwidth using SMA connectors.

FAQ

What is the center frequency of the PE8708?

The center frequency is 1.96 GHz.

How many sections does the PE8708 filter have?

It is a four-section bandpass filter.
