PE8710

Overview

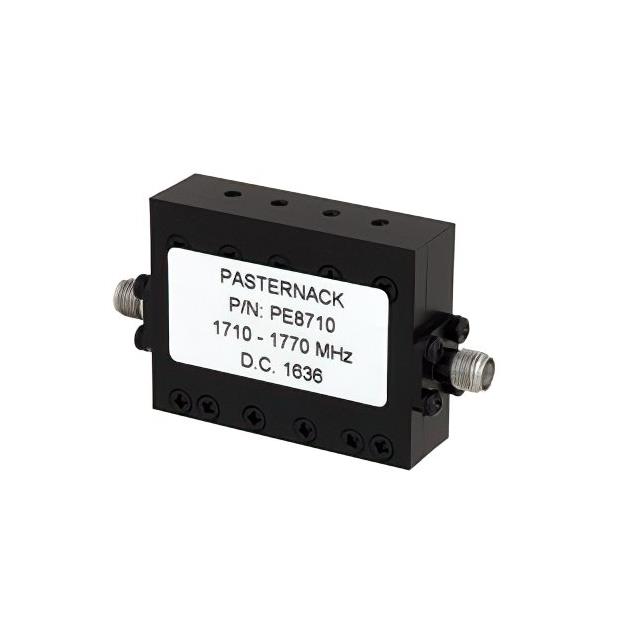

The PE8710 is a four-section bandpass RF filter manufactured by Pasternack. It features SMA female connectors and operates with a center frequency of 1.74 GHz. The device provides a passband bandwidth of 60 MHz, covering the range from 1.71 to 1.77 GHz. This component is specifically engineered for filtering applications in UMTS and AWS communication systems.

Feature Summary

• Four-section bandpass filter design
• SMA female connector interface
• Optimized for UMTS and AWS signal filtering

Applications

• UMTS network filtering
• AWS spectrum filtering
• RF signal conditioning

Procurement Notes

Verify the specific datasheet version for precise insertion loss and return loss values before integration. Confirm that the SMA connector gender matches the system requirements. Ensure environmental ratings align with the deployment conditions. Cross-reference the part number with official Pasternack documentation to confirm current manufacturing status.

Selection Notes

Select this component when a fixed 60 MHz bandwidth is required around 1.74 GHz. The SMA interface dictates compatibility with standard coaxial test and measurement equipment. Consider the physical size and mounting requirements relative to the enclosure design. Evaluate if the four-section topology meets the necessary rejection specifications for the target application.

Part Context

This model belongs to Pasternack's line of RF filters designed for cellular communication bands. It serves as a specialized passive component for managing spectral interference in wireless infrastructure. The product is distinct from cable assemblies or active amplifiers within the manufacturer's catalog.

Replacement Considerations

Consult official Pasternack documentation for verified substitute part numbers. Generic equivalents may not match the specific four-section topology or exact 60 MHz bandwidth requirements.
