PE8711

Overview

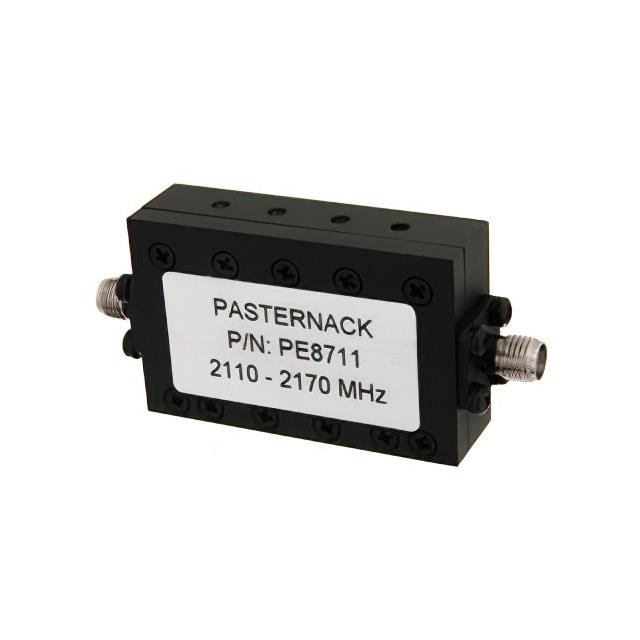

The PE8711 is a four-section bandpass RF filter manufactured by Pasternack. It features SMA female connectors and operates within a frequency range of 2.11 GHz to 2.17 GHz. The device provides a passband bandwidth of 60 MHz with a center frequency of 2.14 GHz. Insertion loss is specified at 1.5 dB. This component is designed for radio frequency applications requiring precise signal filtering.

Feature Summary

• Four-section bandpass filter design
• SMA female connector interface
• Optimized for UMTS/AWS bands

Applications

• UMTS network infrastructure
• AWS band signal processing
• Radio frequency testing equipment

Procurement Notes

Verify the specific datasheet revision and connector gender compatibility before integration. Confirm that the SMA female interface matches your system requirements. Ensure the operating frequency range aligns with your application needs. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this model when a narrow 60 MHz passband is required around 2.14 GHz. The four-section architecture offers steep roll-off characteristics suitable for interference rejection. Consider the SMA connector type for standard RF interconnects. Evaluate insertion loss specifications against system sensitivity requirements.

Part Context

This component belongs to Pasternack's RF filter product line, specifically the bandpass category. It is distinct from their cable assemblies and switches. The PE8711 is part of a series offering various frequency ranges and section counts for different filtering needs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs before considering alternative components.
