PE8713

Overview

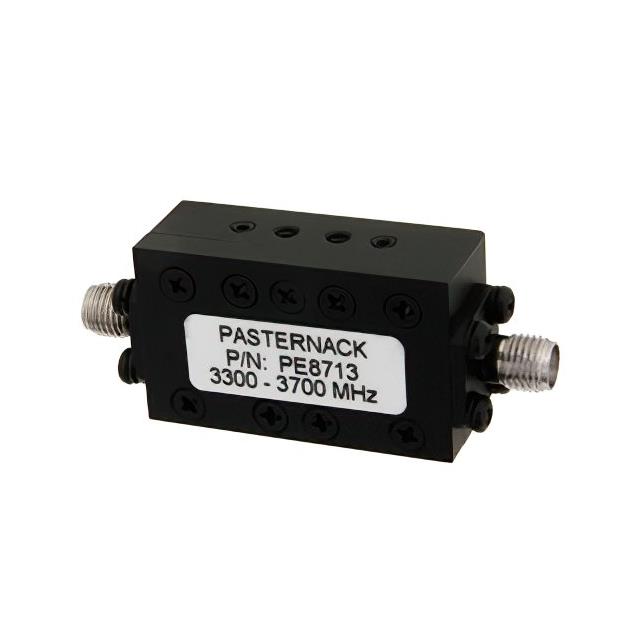

The PE8713 is a four-section bandpass RF filter manufactured by Pasternack. It features SMA female connectors and operates within a frequency range of 3.3 GHz to 3.7 GHz, providing a 400 MHz bandwidth centered at 3.5 GHz. The component exhibits an insertion loss of 0.75 dB and supports a power handling capacity of 5 W.

Feature Summary

• Four-section bandpass filter design for signal conditioning
• Integrated SMA female connectors for direct interfacing
• Optimized for WiMAX application filtering requirements

Applications

• WiMAX system filtering
• RF signal processing modules
• Communication equipment front-ends

Procurement Notes

Verify the specific connector type and gender against project requirements before ordering. Confirm that the 5 W power rating and 0.75 dB insertion loss meet the system specifications. Ensure compatibility with existing SMA interfaces in the assembly.

Selection Notes

Select this component when a fixed 400 MHz bandwidth around 3.5 GHz is required. Consider the four-section topology for necessary attenuation characteristics outside the passband. Verify physical integration constraints regarding the module form factor and connector orientation.

Part Context

This part belongs to Pasternack's line of RF bandpass filters designed for wireless communication applications. It provides a standardized solution for frequency selection in systems requiring precise spectral control within the 3.3–3.7 GHz range.

Replacement Considerations

Check datasheets for alternative models offering similar center frequencies and bandwidths. Verify mechanical compatibility and connector types before substituting. Ensure electrical performance metrics align with original design specifications.

FAQ

What is the center frequency of the PE8713?

The center frequency is 3.5 GHz.

How many sections does the filter contain?

The PE8713 contains four filter sections.
