Product Detailed Parameters
- Description：RF FILTER BANDPASS 5.4GHZ MODULE
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency：5.4GHz Center
- Bandwidth：1GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：0.75dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.280" L x 0.701" W (32.50mm x 17.80mm)
- Height (Max)：0.541" (13.75mm)
Download product information
Overview

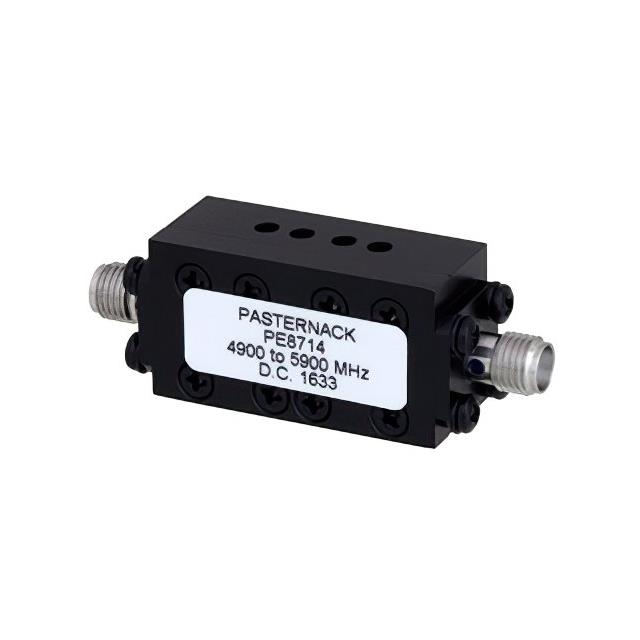

The PE8714 is a four-section bandpass RF filter module manufactured by Pasternack. It features SMA female connectors and operates within a frequency range of 4.9 GHz to 5.9 GHz. The device provides a 1,000 MHz bandwidth centered at 5.4 GHz with an insertion loss of 0.75 dB.
Feature Summary
- Four-section bandpass filter design
- SMA female connector interface
- WiMAX band operation capability
Applications
- WiMAX communication systems
- RF signal filtering
- Microwave applications
Procurement Notes
Verify the specific datasheet for detailed electrical characteristics and mechanical dimensions before integration. Confirm connector gender and mounting requirements match system specifications. Ensure environmental ratings align with operational conditions.
Selection Notes
Select this component for applications requiring precise filtering in the WiMAX frequency range. Consider the SMA interface compatibility and module form factor when designing the RF chain. Evaluate insertion loss and bandwidth constraints against system performance needs.
Part Context
This part belongs to Pasternack's portfolio of RF and microwave components, which includes cable assemblies, connectors, and antennas. The PE8714 specifically addresses filtering needs in high-frequency wireless communications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
