PE8716

Overview

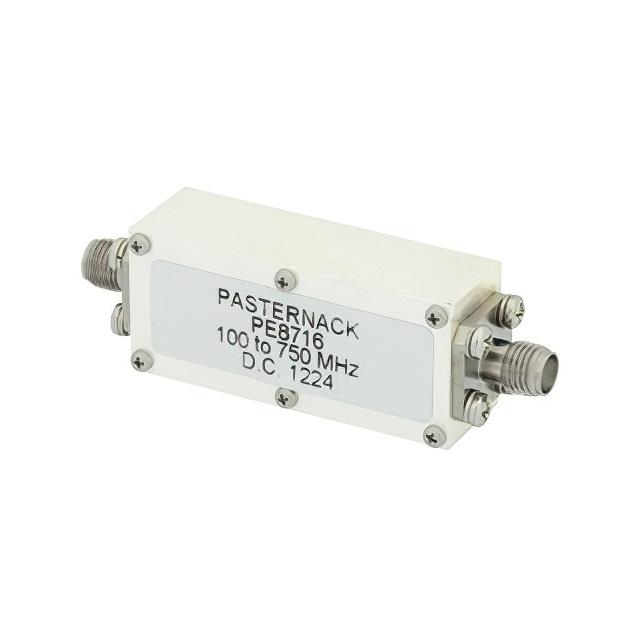

The PE8716 is a five-section high-pass filter manufactured by Pasternack, designed for signal conditioning applications. It features SMA female connectors and operates within a frequency range of 100 MHz to 750 MHz. The device maintains a characteristic impedance of 50 Ohms and provides a passband starting at 650 MHz. Key electrical specifications include a maximum insertion loss of 1 dB and an input maximum VSWR of 2:1. The unit supports a maximum power handling capacity of 5 Watts.

Feature Summary

• Five-section high-pass filter design for effective signal filtering
• SMA female connector interface for standard RF integration
• Operates from 100 MHz to 750 MHz with a 650 MHz passband

Applications

• RF signal conditioning in communication systems
• High-frequency circuit protection and filtering
• Test and measurement equipment signal integrity enhancement

Procurement Notes

Verify the specific datasheet version for the PE8716 to confirm current manufacturing status and compliance certifications. Ensure that the SMA female connector type matches your system requirements. Check for any regional distribution restrictions or lead time variations directly with authorized Pasternack distributors before finalizing procurement plans.

Selection Notes

Select the PE8716 when a high-pass filter with a 650 MHz cutoff is required for 50 Ohm systems. Confirm that the operating frequency range of 100 MHz to 750 MHz aligns with your application needs. Verify that the SMA female interface is compatible with your existing cabling and connector infrastructure. Consider the 5 Watt power rating for thermal management.

Part Context

The PE8716 belongs to Pasternack's line of RF filters and signal conditioning components. It is part of a broader portfolio that includes various coaxial adapters, cables, and attenuators. This specific model addresses the need for precise high-frequency filtering in professional RF environments, complementing other passive microwave components offered by the manufacturer.

Replacement Considerations

No public confirmed substitute part numbers are available for the PE8716.
