PE8718

Overview

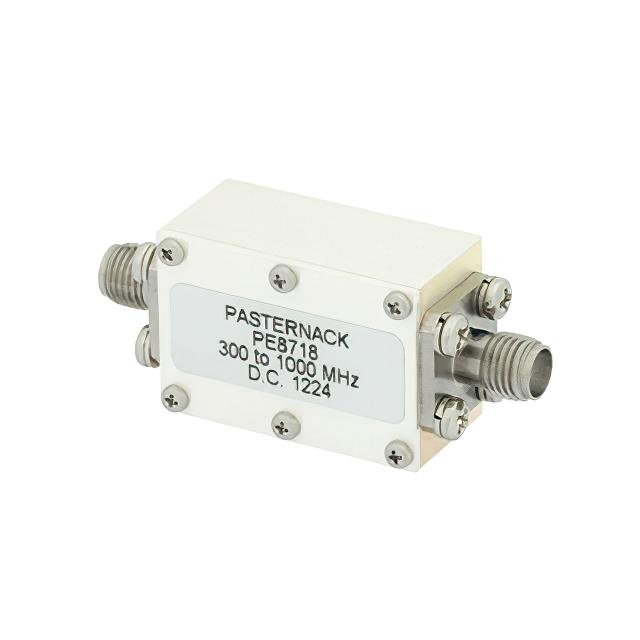

The PE8718 is a five-section high-pass filter manufactured by Pasternack. It features SMA female connectors and operates within a frequency range of 300 MHz to 1000 MHz. The device has a center frequency of 650 MHz and a bandwidth of 700 MHz. Physical dimensions are 1.098 inches in length and 0.752 inches in width, with a chassis mounting type.

Feature Summary

• Five-section high-pass filter design
• SMA female connector interface
• Chassis mount configuration

Applications

• Signal conditioning
• RF filtering applications
• Frequency selection systems

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical drawings before integration. Confirm that the SMA female connector gender matches the system requirements. Ensure chassis mounting provisions align with the enclosure design specifications.

Selection Notes

Select this component when a fixed high-pass characteristic is required between 300 MHz and 1000 MHz. The five-section architecture provides steep attenuation characteristics above the cutoff frequency. Verify that the SMA interface compatibility meets the existing RF chain requirements.

Part Context

This part belongs to the Pasternack signal conditioning category, specifically designed for radio frequency applications. It serves as a passive filter module intended for integration into larger RF systems requiring specific frequency band rejection or selection capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
