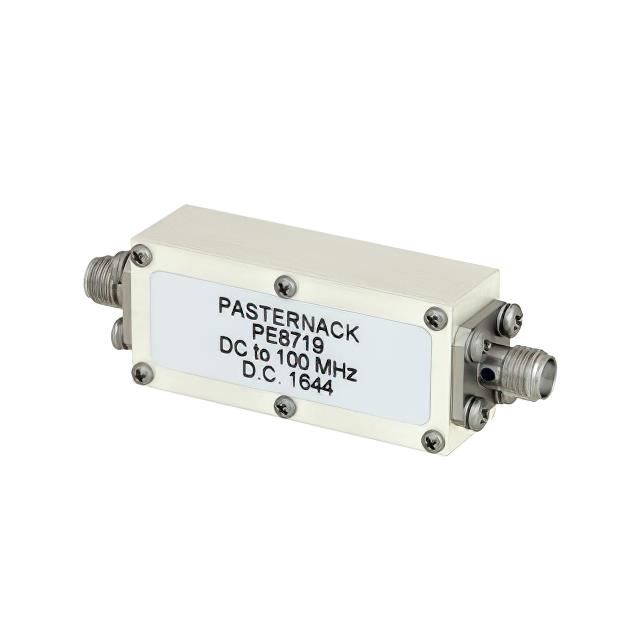

PE8719

$464.10

Description：5 Section Lowpass Filter With SM
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:dbe03cefaeda Category: RF Filters Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：5 Section Lowpass Filter With SM
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency：50MHz Center
Bandwidth：100MHz
Filter Type：Low Pass
Ripple：-
Insertion Loss：1dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：1.701" L x 0.752" W (43.20mm x 19.10mm)
Height (Max)：0.598" (15.20mm)

Download product information

PE8719

Overview

The PE8719 is a five-section lowpass filter manufactured by Pasternack, designed for signal conditioning applications. It features SMA female connectors and operates from DC to 100 MHz. The device utilizes LC filtering technology to provide effective attenuation of high-frequency signals while maintaining passband integrity within the specified frequency range.

Feature Summary

Five-section LC filtering architecture
SMA female connector interface
DC to 100 MHz operational bandwidth

Applications

Signal conditioning in RF systems
High-frequency noise suppression
Base station equipment filtering

Procurement Notes

Verify datasheet specifications against application requirements. Confirm connector type and frequency range compatibility. Check RoHS compliance status. Ensure proper handling procedures for RF components.

Selection Notes

Consider insertion loss and return loss characteristics for system integration. Evaluate physical dimensions for enclosure compatibility. Assess power handling capabilities if applicable. Verify operating temperature range requirements.

Part Context

This component belongs to Pasternack's RF filter product line, specifically designed for lowpass filtering applications. It represents a specialized solution for managing signal integrity in radio frequency environments requiring precise frequency cutoff characteristics.

Replacement Considerations

No publicly confirmed substitute part numbers are available for this specific model. Consult manufacturer documentation for equivalent performance alternatives.
