PE8723

Overview

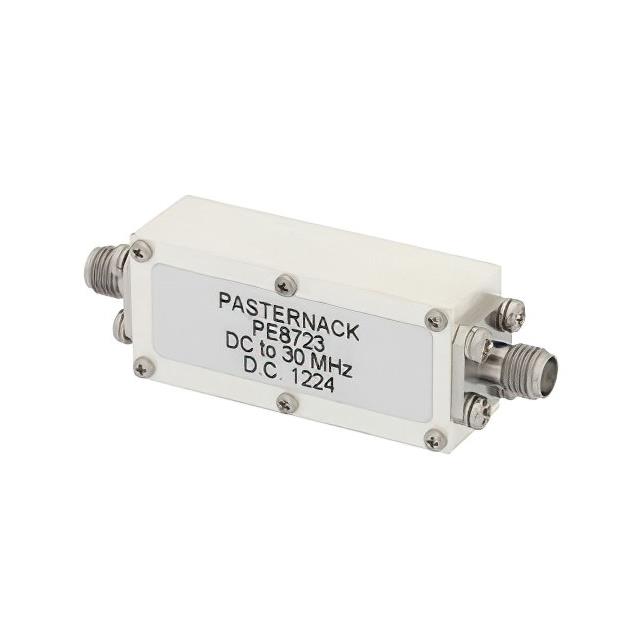

The Pasternack PE8723 is a five-section low-pass RF filter designed for operation from DC to 30 MHz. It features SMA female connectors and maintains a 30 MHz passband. The unit exhibits a center frequency of 15 MHz with 1 dB insertion loss. Constructed as a module with integrated connectors, it provides signal conditioning within the specified frequency range.

Feature Summary

• Five-section low-pass filter architecture
• SMA female connector interface
• DC to 30 MHz operating range

Applications

• RF signal conditioning
• Low-pass filtering applications
• Module integration

Procurement Notes

Verify the specific datasheet version for exact attenuation curves and mechanical dimensions. Confirm connector gender and mounting requirements against system specifications. Ensure environmental ratings match operational conditions. Cross-reference part numbers to avoid confusion with similar series models.

Selection Notes

Select this component when a five-section low-pass response is required up to 30 MHz. The SMA interface suits standard coaxial systems. Consider insertion loss and physical size constraints. Verify compatibility with existing connector types before procurement.

Part Context

This model belongs to Pasternack's line of RF filters. It is categorized under signal conditioning components. The product integrates passive filtering elements with standard RF connectors for immediate deployment in test and measurement or communication circuits.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify electrical performance matches original specifications. Check mechanical footprint compatibility. No public substitute part numbers are confirmed.
