PE8724

Overview

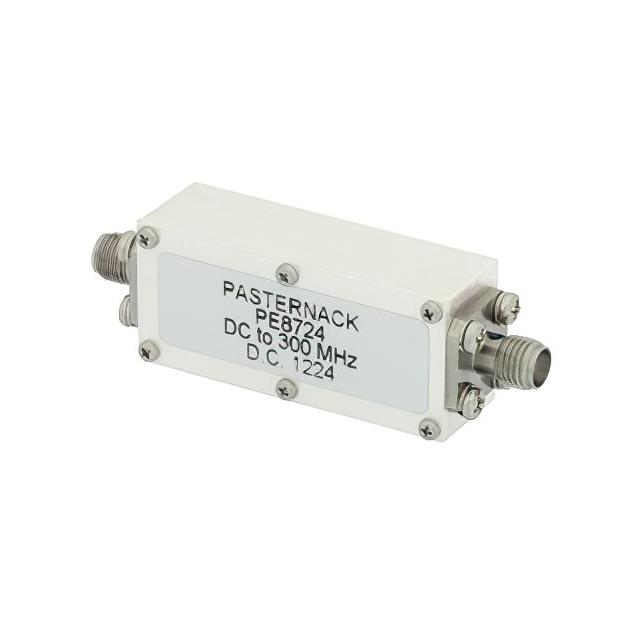

The Pasternack PE8724 is a signal conditioning component classified as a five-section lowpass filter. It features SMA female connectors on both ends and operates from DC to 300 MHz. The device provides a 300 MHz passband, designed for applications requiring frequency filtering within this specific range.

Feature Summary

• Five-section lowpass filter design
• SMA female connector interface
• Operates from DC to 300 MHz

Applications

• Signal conditioning in RF systems
• Frequency filtering up to 300 MHz
• Test and measurement equipment

Procurement Notes

Verify the exact datasheet specifications for insertion loss and return loss values before integration. Confirm that the SMA female interface matches your system requirements. Check for RoHS compliance status if environmental regulations apply to your deployment.

Selection Notes

Select this model when a fixed 300 MHz cutoff is required. Ensure the SMA female connection type aligns with existing cabling. Consider the physical size constraints of the filter housing during PCB or chassis layout planning.

Part Context

This component belongs to Pasternack's signal conditioning portfolio. It is distinct from their cable assemblies, serving as a discrete filter element rather than a passive interconnect solution.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific five-section configuration. Evaluate generic lowpass filters with matching SMA interfaces if an exact match is unavailable.

FAQ

What is the operating frequency range?

The PE8724 operates from DC to 300 MHz.

What type of connectors does it use?

It uses SMA female connectors on both ends.
