PE8729

Overview

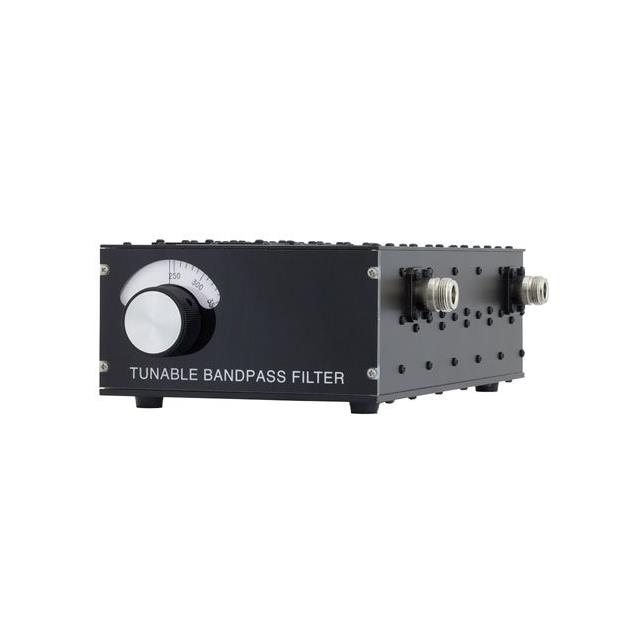

The Pasternack PE8729 is a five-section tunable band pass filter equipped with N female connectors. It operates within a frequency range of 250 MHz to 500 MHz and supports a 5% bandwidth configuration. The unit features a center frequency of 375 MHz and maintains a 1 dB insertion loss specification.

Feature Summary

• Five-section tunable band pass filter design
• Adjustable frequency range from 250 MHz to 500 MHz
• N female connector interface

Applications

• RF signal processing systems
• Communication equipment filtering
• Test and measurement instrumentation

Procurement Notes

Verify the exact datasheet version for the PE8729 model before procurement. Confirm that the N female connector type matches your system requirements. Ensure the 250 MHz to 500 MHz tuning range aligns with your specific application needs. Check for any specific environmental ratings or mounting hardware requirements listed in the official documentation.

Selection Notes

Select the PE8729 when a tunable band pass filter is required between 250 MHz and 500 MHz. The five-section design offers specific filtering characteristics suitable for applications needing adjustable center frequencies. Verify compatibility with N female connectors and ensure the 1 dB insertion loss meets system performance criteria.

Part Context

The PE8729 belongs to Pasternack's line of tunable RF filters, specifically designed as a five-section band pass filter. It provides adjustable frequency capabilities within the VHF/UHF spectrum, utilizing N female connectors for integration into various RF systems requiring precise signal selection.

Replacement Considerations

Consult official Pasternack documentation for verified substitute part numbers. Ensure any replacement maintains the five-section tunable architecture and N female connector interface. Verify that the frequency range and bandwidth specifications match the original PE8729 requirements.
