PE8730

Overview

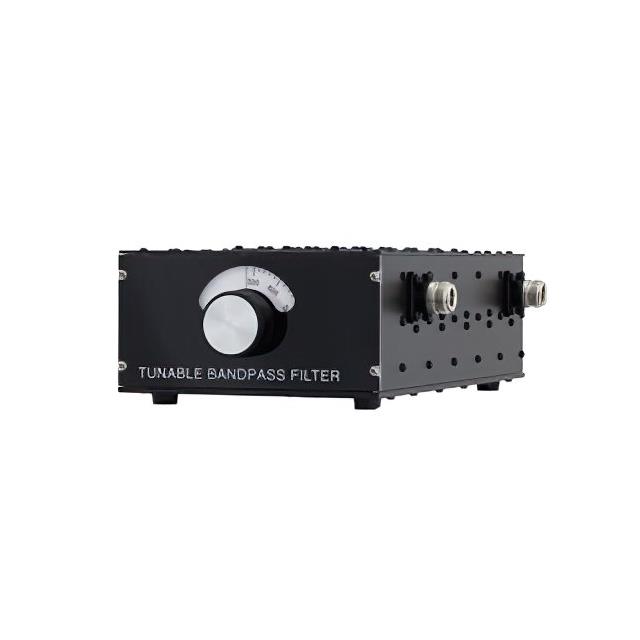

The Pasternack PE8730 is a five-section tunable band pass filter module designed for radio frequency applications. It operates within a frequency range of 500 MHz to 1,000 MHz and features a 5% bandwidth. The device provides an insertion loss of 1 dB and utilizes N female connectors for interface connectivity. It is constructed as a chassis mount unit, ensuring stable performance in RF signal processing environments.

Feature Summary

• Five-section tunable architecture for precise frequency selection
• N female connector interfaces for standard RF integration
• Chassis mount design for structural stability

Applications

• Radio frequency signal filtering
• Tunable band pass applications
• RF system component integration

Procurement Notes

Verify the specific datasheet version and connector orientation before procurement. Confirm that the N female interface matches the system requirements. Ensure the chassis mount dimensions align with the installation space. Validate the operating frequency range against the application needs to ensure compatibility with the 500 MHz to 1,000 MHz specification.

Selection Notes

Select this model when a tunable band pass filter with N female connectors is required. Consider the 500 MHz to 1,000 MHz operating range and 5% bandwidth specifications. Evaluate the chassis mount form factor for integration into existing RF systems. Compare the 1 dB insertion loss against system sensitivity requirements.

Part Context

The PE8730 belongs to the Pasternack tunable RF filter series. It is engineered for applications requiring adjustable frequency response within the specified UHF range. The module format supports direct chassis integration, providing a robust solution for RF signal conditioning tasks in professional communication and testing equipment.

Replacement Considerations

Consult official Pasternack documentation for verified substitute part numbers. Ensure any replacement maintains the five-section tunable design and N female connector configuration. Verify that the frequency range and bandwidth specifications match the original requirements.
