PE8732

Overview

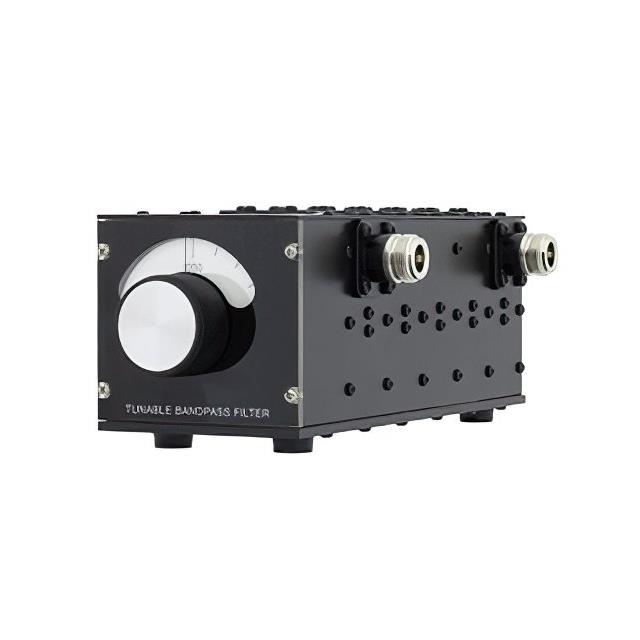

The PE8732 is a five-section tunable bandpass RF filter manufactured by Pasternack Enterprises. It operates within a frequency range of 1,000 MHz to 2,000 MHz with a center frequency of 1.5 GHz and a bandwidth of 50 MHz. The device features N female connectors, maintains a 50 Ohm impedance, and supports an input power of 50 W. Its maximum insertion loss is specified at 1 dB.

Feature Summary

• Five-section tunable bandpass design for precise frequency selection
• N female connector interface for standard coaxial integration
• Capable of handling 50 W input power levels
• Low insertion loss characteristic ensuring signal integrity

Applications

• RF test and measurement instrumentation
• Wireless communication system filtering
• Signal processing equipment requiring tunable bandpass characteristics

Procurement Notes

Verify the specific datasheet version when ordering, as technical specifications may be updated. Confirm that the N female connector type matches your system requirements. Ensure the operating environment remains within the specified temperature and power limits to maintain performance. Check for any specific packaging or handling instructions provided by the manufacturer for sensitive RF components.

Selection Notes

Select this component when a tunable bandpass response between 1 GHz and 2 GHz is required. The 50 W power rating makes it suitable for higher power applications compared to standard low-power filters. The five-section design offers improved selectivity. Ensure compatibility with N-type connectors in your existing infrastructure before finalizing the selection.

Part Context

This model belongs to Pasternack's line of tunable RF filters. These components are designed for applications requiring adjustable frequency response within the UHF and L/S-band ranges. The series typically emphasizes robust construction and consistent electrical performance across the tuning range.

Replacement Considerations

Direct substitutes include other Pasternack tunable bandpass filters with similar frequency ranges and connector types. Verify that replacement units match the 50 W power handling and 1 dB insertion loss specifications. Cross-reference mechanical dimensions to ensure fitment in existing assemblies.
