PE8734

Overview

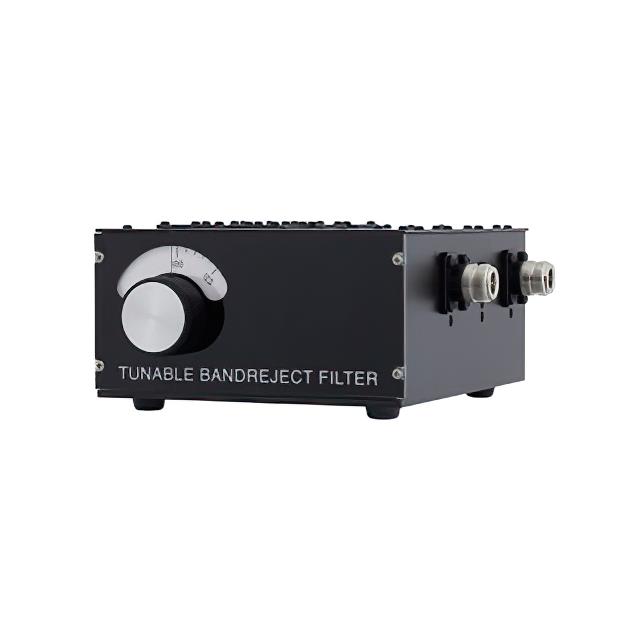

The Pasternack PE8734 is a tunable band reject filter featuring N female connectors. It operates within a frequency range of 100 MHz to 200 MHz and maintains a bandwidth of 1%.

Feature Summary

• Provides tunable band rejection capabilities for signal filtering applications.

Applications

• RF signal conditioning requiring adjustable frequency rejection.

Procurement Notes

Verify the specific datasheet version and connector specifications directly with the manufacturer or authorized distributor before procurement. Confirm that the N-type interface and tunable bandwidth parameters align with your system requirements. Ensure compliance with relevant technical standards for the intended operational environment.

Selection Notes

Select this component when a tunable band reject filter is required within the 100 MHz to 200 MHz range. The 1% bandwidth specification allows for precise frequency adjustment. Ensure compatibility with N-type connector interfaces in the existing RF chain.

Part Context

This component belongs to the Pasternack RF Filter series, specifically designed as a tunable band reject filter. It utilizes N female connectors to facilitate integration into standard RF systems requiring adjustable frequency suppression within the specified low-frequency range.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
