PE8736

Overview

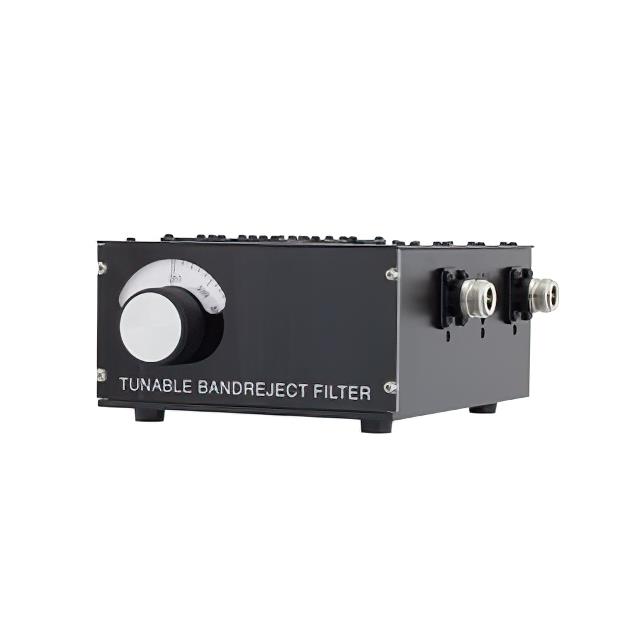

The Pasternack PE8736 is a three-section tunable band reject filter designed for RF applications. It features N female connectors and operates within a frequency range of 250 MHz to 500 MHz. The device supports a 1% bandwidth configuration, allowing for precise signal filtering in demanding environments.

Feature Summary

• Three-section tunable architecture for customizable rejection characteristics
• N female connector interface for standard RF integration
• Operates within the 250 MHz to 500 MHz frequency spectrum

Applications

• RF signal processing systems requiring specific band rejection
• Test and measurement equipment needing tunable filtering
• Communication systems operating between 250 MHz and 500 MHz

Procurement Notes

Verify the specific tuning requirements and bandwidth specifications against your system design before procurement. Confirm that the N female connector type matches your existing infrastructure. Ensure the operating frequency range of 250 MHz to 500 MHz aligns with your application needs. Check for any specific environmental ratings if used in harsh conditions.

Selection Notes

Select this component when a tunable band reject filter is required within the 250-500 MHz range. The three-section design offers flexibility for adjusting rejection frequencies. Consider the N female connector compatibility with your system's interconnects. Evaluate the 1% bandwidth capability against your signal integrity requirements.

Part Context

This component belongs to the Pasternack RF filters category, specifically focusing on tunable band reject solutions. It is engineered for precision filtering tasks where adjustable frequency rejection is necessary. The use of N female connectors ensures broad compatibility with standard RF testing and communication hardware.

Replacement Considerations

No publicly confirmed substitute part numbers are available for the PE8736. Verify compatibility with existing systems carefully if considering alternatives.
