PE8738

Overview

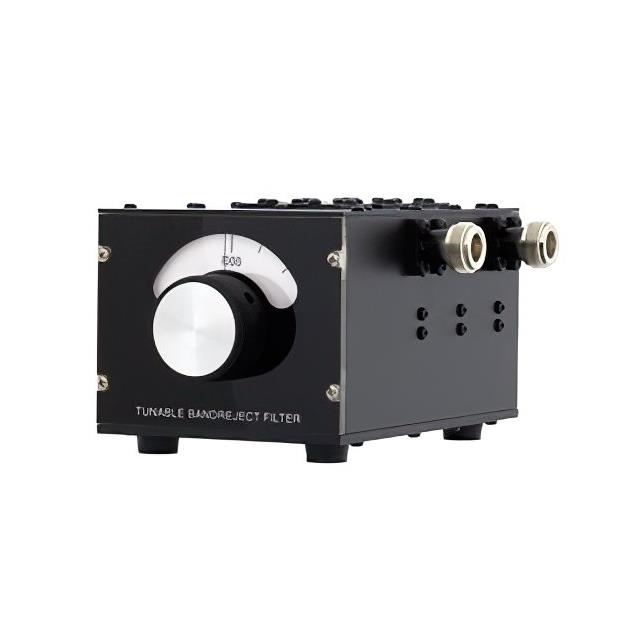

The PE8738 is a tunable band reject filter manufactured by Pasternack. It features three sections and utilizes N-type female connectors for signal interfacing. The component operates with a center frequency of 1.5 GHz and provides a bandwidth of 1 GHz. Designed as a module, it integrates RF filtering capabilities within a compact form factor suitable for various radio frequency applications requiring specific frequency rejection.

Feature Summary

• Tunable band reject functionality
• Three-section filter design
• N-type female connector interface

Applications

• RF signal conditioning
• Frequency rejection in communication systems
• Module integration for RF circuits

Procurement Notes

Verify the exact specifications against the official datasheet before procurement. Confirm that the N-type female connector interface matches your system requirements. Ensure the tunable band reject characteristics align with your specific frequency rejection needs. Check availability status through authorized distributors or the manufacturer directly.

Selection Notes

Select the PE8738 when a tunable band reject filter is required for RF applications. Consider its three-section design for effective filtering performance. Verify compatibility with N-type connectors in your existing setup. Evaluate the 1.5 GHz center frequency and 1 GHz bandwidth to ensure they meet your operational requirements.

Part Context

The PE8738 belongs to Pasternack's range of RF filters. It is part of a series offering various filtering solutions for radio frequency applications. This model specifically addresses the need for tunable band rejection, providing flexibility in frequency management within RF systems.

Replacement Considerations

No public confirmed substitute part numbers are available for the PE8738. When sourcing replacements, verify that any alternative component meets the same electrical specifications, connector type, and mechanical dimensions to ensure seamless integration into existing designs.
