PE87FL1000

Overview

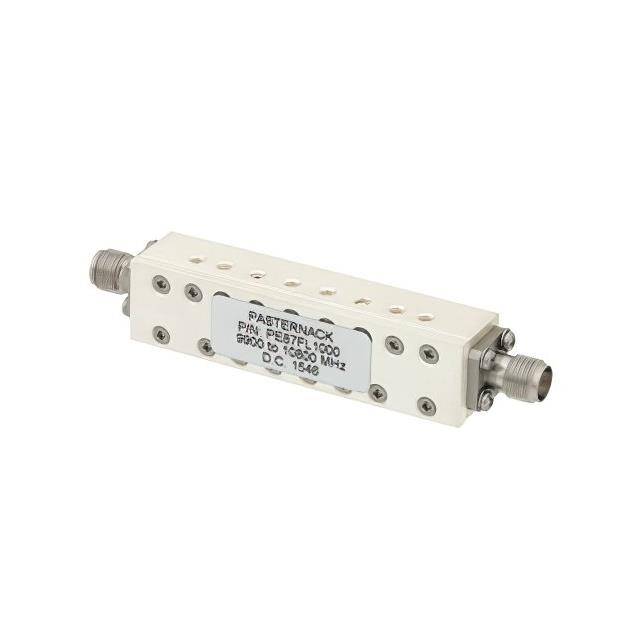

The PE87FL1000 is an eight-section bandpass filter manufactured by Pasternack, designed for signal conditioning applications. It features SMA female connectors and operates within a frequency range of 9.9 GHz to 10.8 GHz. The device provides a passband width of 900 MHz. Constructed as part of the RF coaxial filters series, it is packaged in bulk units. The component weighs approximately 32.659 grams and complies with RoHS standards.

Feature Summary

• Eight-section bandpass filter design for enhanced spectral selectivity
• SMA female connector interface for standard RF integration
• Operating frequency range from 9.9 GHz to 10.8 GHz
• 900 MHz passband width for precise signal filtering

Applications

• RF signal conditioning systems
• Microwave communication equipment
• Test and measurement instrumentation
• Satellite ground station receivers

Procurement Notes

Verify availability through authorized distributors as stock status may vary. Confirm that the SMA female connector type matches system requirements. Ensure the operating frequency range aligns with specific application needs. Check RoHS compliance documentation if required for regulatory adherence. Review datasheet specifications for mechanical dimensions and weight constraints before integration.

Selection Notes

Select this component when high-order filtering is required within the 9.9 GHz to 10.8 GHz range. The eight-section design offers superior rejection characteristics compared to lower-order alternatives. Consider the SMA interface compatibility with existing PCB or cable assemblies. Evaluate the physical weight and bulk packaging format for handling and storage logistics. Ensure the 900 MHz passband width meets the specific bandwidth requirements of the target application.

Part Context

The PE87FL1000 belongs to Pasternack's RF coaxial filters series, specifically categorized under signal conditioning products. It is distinct from other models like the PE87FL1007, which operates at higher frequencies (17.2 GHz to 21.2 GHz). This model is positioned for applications requiring precise filtering in the Ka-band spectrum, utilizing a robust multi-section architecture for improved performance.

Replacement Considerations

Direct substitutes are not explicitly listed in public documentation. Similar models in the PE87FL series, such as PE87FL1007, offer different frequency ranges and should be evaluated based on specific operational requirements rather than direct interchangeability.
