Product Detailed Parameters
- Description：11 Section Bandpass Filter With
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency：11.175GHz Center
- Bandwidth：1.25GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.25dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.689" L x 0.500" W (68.30mm x 12.70mm)
- Height (Max)：0.478" (12.15mm)
Download product information
Overview

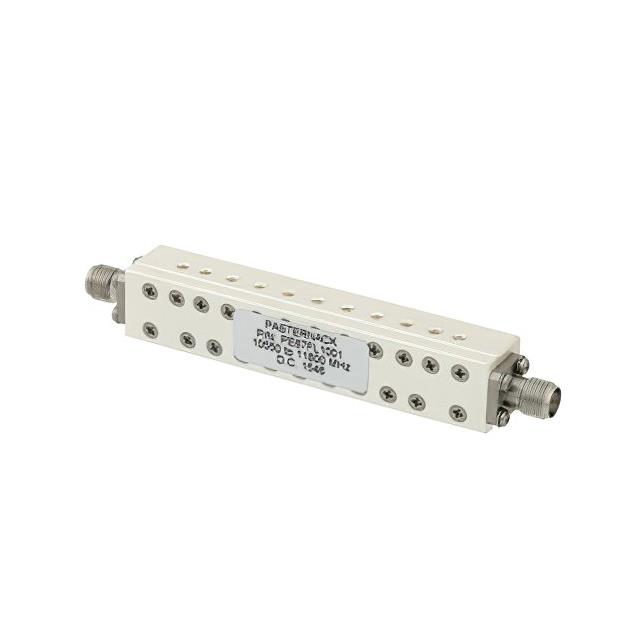

The PE87FL1001 is an 11-section bandpass filter manufactured by Pasternack. It operates within a frequency range of 10.55 GHz to 11.8 GHz, providing a passband bandwidth of 1.25 GHz. The device features SMA female connectors and exhibits an insertion loss of 1.25 dB. Designed for chassis mounting, it functions with a center frequency of 11.175 GHz. The unit weighs approximately 21.546 grams and is packaged in bulk quantities.
Feature Summary
- Utilizes an 11-section design for precise signal filtering
- Equipped with SMA female connectors for standard RF interfacing
- Constructed as a module suitable for chassis mounting applications
Applications
- Radio frequency signal conditioning
- RF component filtering systems
- Chassis-mounted RF equipment integration
Procurement Notes
Verify the specific connector type and mounting configuration against your system requirements before ordering. Confirm that the SMA female interface matches your existing cabling infrastructure. Ensure the chassis mounting style aligns with your enclosure design constraints. Check regional availability as distribution status may vary by location.
Selection Notes
Select this component when an 11-section bandpass response is required around 11.175 GHz. The 1.25 GHz bandwidth suits applications needing moderate spectral selectivity. The SMA interface offers compatibility with common RF test and measurement setups. Consider the chassis mount form factor if panel installation is necessary.
Part Context
This part belongs to the Pasternack RF coaxial filters series. It falls under the signal conditioning product category. The manufacturer specializes in radio frequency components. This specific model represents a fixed-frequency bandpass solution rather than a tunable variant.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific component. Verify electrical specifications carefully when considering alternative models from other manufacturers to ensure compatibility with the 10.55-11.8 GHz operating range.
