PE87FL1002

$623.22

Description：RF FILT BANDPASS 12.25GHZ INLINE
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:138a29986ca3 Category: RF Filters Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILT BANDPASS 12.25GHZ INLINE
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency：12.25GHz Center
Bandwidth：1.1GHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：1.25dB
Mounting Type：Free Hanging (In-Line)
Package / Case：Inline, SMA Connection, F and M
Size / Dimension：2.488" L x 0.500" W (63.20mm x 12.70mm)
Height (Max)：0.472" (12.00mm)

Download product information

PE87FL1002

Overview

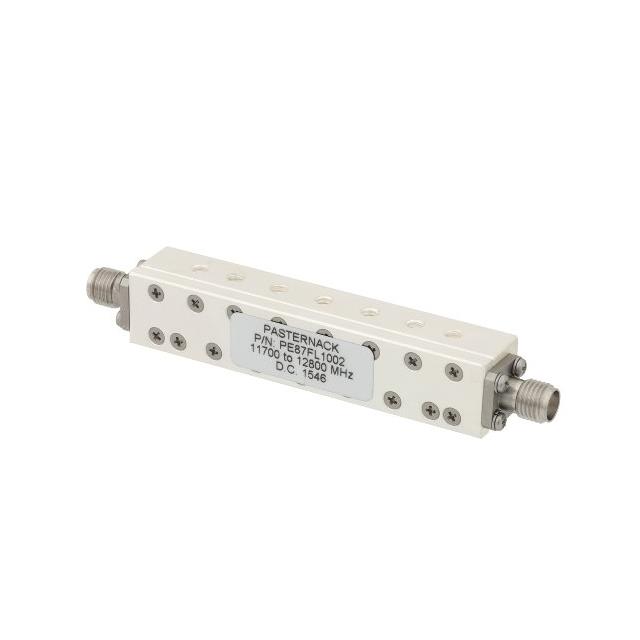

The PE87FL1002 is a seven-section bandpass filter manufactured by Pasternack. It operates within a frequency range of 11.7 GHz to 12.8 GHz, providing a passband bandwidth of 1.1 GHz. The component utilizes SMA female connectors for interface connectivity. This RF coaxial filter is designed for signal conditioning applications requiring precise frequency selection in the microwave spectrum.

Feature Summary

Seven-section bandpass filter architecture
SMA female connector interfaces
11.7 GHz to 12.8 GHz operating range

Applications

Microwave communication systems
RF signal conditioning
Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for accurate electrical parameters before integration. Confirm that SMA female connector compatibility matches the system design requirements. Ensure the operating frequency range aligns with the intended application spectrum to maintain optimal filter performance.

Selection Notes

Select this model when a narrow 1.1 GHz passband within the 11.7-12.8 GHz range is required. The seven-section design offers steep roll-off characteristics suitable for interference rejection. Verify physical dimensions and weight specifications against board space constraints.

Part Context

This component belongs to the Pasternack RF coaxial filters series. It is part of a family of bandpass filters utilizing SMA connectors. Similar models include the PE87FL1007 and other variants offering different center frequencies and bandwidths for diverse microwave applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the seven-section topology, SMA interface, and 11.7-12.8 GHz frequency range specifications.
