PE87FL1005

Overview

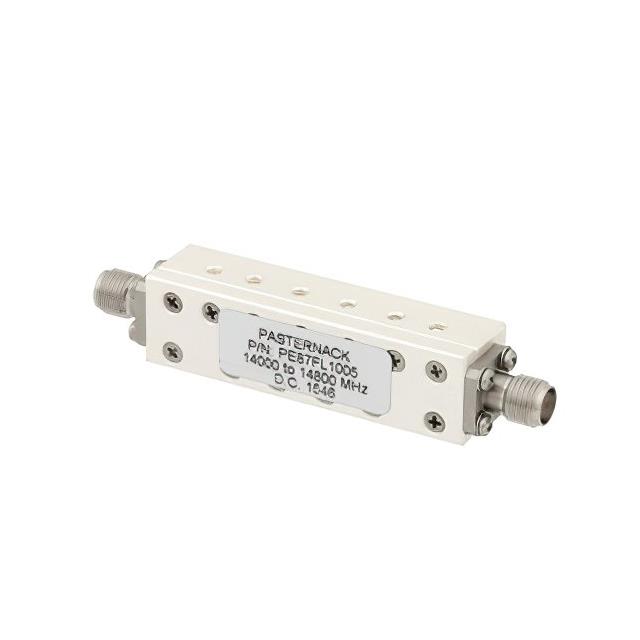

The PE87FL1005 is a six-section bandpass filter manufactured by Pasternack. It operates within a frequency range of 14 GHz to 14.8 GHz, providing an 800 MHz passband with a center frequency of 14.4 GHz. The module features SMA female connectors on all ports and exhibits a typical insertion loss of 1.5 dB. Designed for RF applications, this component supports signal filtering in the specified microwave frequency band.

Feature Summary

• Six-section bandpass filter architecture
• SMA female connectors on all ports
• 14.4 GHz center frequency operation
• 1.5 dB typical insertion loss

Applications

• Microwave communication systems
• RF signal conditioning
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm connector polarity and mating compatibility with existing SMA interfaces. Ensure environmental ratings meet operational requirements. Cross-reference part numbers to avoid confusion with similar models in the PE87FL series.

Selection Notes

Select this model when a narrow 800 MHz bandwidth is required around 14.4 GHz. The six-section design offers steep roll-off characteristics suitable for interference rejection. Verify that the SMA interface aligns with system cabling standards. Consider thermal management if operating near maximum power limits defined in the technical specifications.

Part Context

This component belongs to Pasternack's PE87FL series of modular RF filters. These units are engineered for high-performance signal integrity in microwave frequencies. The series provides various frequency options while maintaining consistent connector types and form factors for standardized integration into RF assemblies.

Replacement Considerations

Consult official substitution lists for equivalent performance. Verify that any alternative maintains the 14-14.8 GHz range and SMA connectivity. Ensure mechanical footprint compatibility if PCB mounting is involved.
