PE87FL1006

Overview

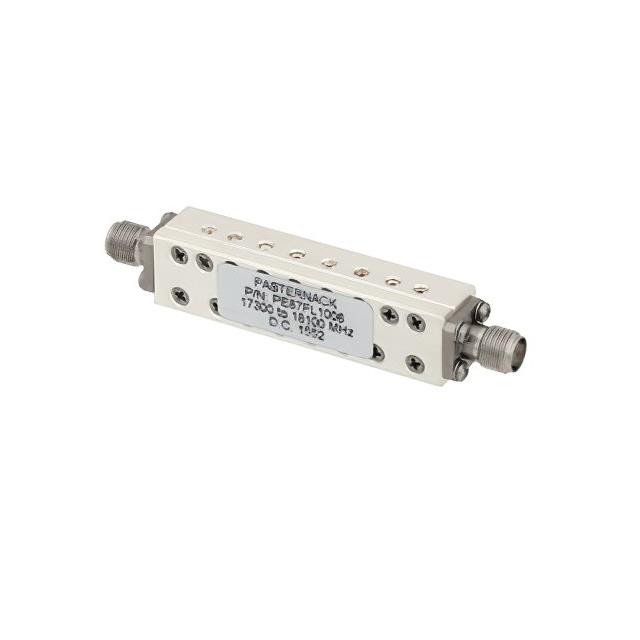

The PE87FL1006 is an eight-section bandpass filter manufactured by Pasternack. It operates within a frequency range of 17.3 GHz to 18.1 GHz, providing an 800 MHz passband with a center frequency of 17.7 GHz. The device features SMA female connectors and supports a continuous wave input power of up to 2 W. It has a module insertion loss of 1.5 dB and weighs 32.659 g.

Feature Summary

• Eight-section bandpass filter design
• SMA female connector interface
• Supports 2 W CW input power

Applications

• RF signal conditioning
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the PE87FL1006 to confirm current manufacturing status and technical specifications. Ensure compatibility with SMA female interfaces in your system design. Check regional availability as distribution may vary by location.

Selection Notes

Select this component when an 800 MHz bandwidth centered at 17.7 GHz is required. The eight-section architecture provides steep roll-off characteristics suitable for precise filtering applications. Confirm that the 2 W power handling meets your system's operational requirements.

Part Context

This part belongs to the RF coaxial filters series from Pasternack. It is categorized under signal conditioning products. The unit weight is 32.659 g, and it is typically packaged in bulk quantities.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
