Product Detailed Parameters
- Description：RF FILTER BAND PASS 19.2GHZ MOD
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency：19.2GHz Center
- Bandwidth：4GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.319" L x 0.500" W (33.50mm x 12.70mm)
- Height (Max)：0.412" (10.46mm)
Download product information
Overview

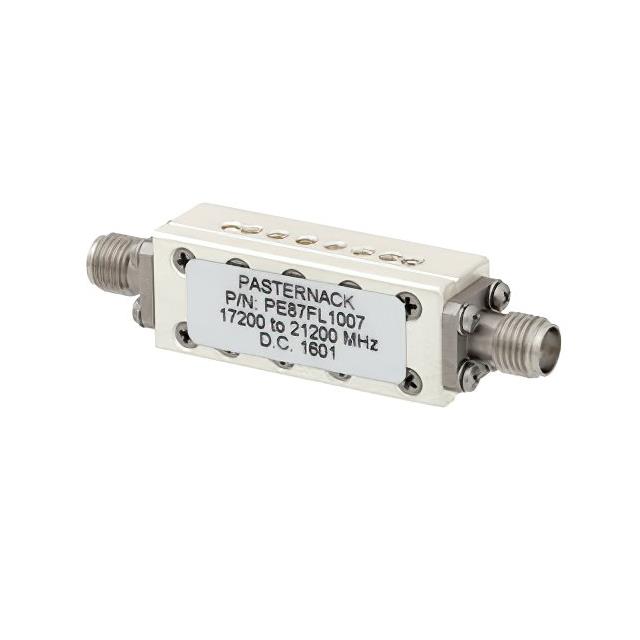

The PE87FL1007 is an eight-section bandpass filter manufactured by Pasternack. It operates within a frequency range of 17.2 GHz to 21.2 GHz, providing a 4 GHz passband with a center frequency of 19.2 GHz. The component features SMA female connectors and exhibits a 1 dB insertion loss module characteristic. Designed for signal conditioning applications, it weighs approximately 32.659 grams and is packaged in bulk quantities.
Feature Summary
- Eight-section bandpass filter design for precise signal conditioning
- SMA female connector interface for standard RF integration
- Operates within the 17.2 GHz to 21.2 GHz frequency spectrum
Applications
- Microwave communication systems requiring specific band filtering
- Test and measurement equipment operating in the K-band range
- Signal conditioning modules for high-frequency electronic circuits
Procurement Notes
Verify the SMA connector gender and frequency specifications against system requirements before procurement. Confirm that the 17.2 GHz to 21.2 GHz operational range aligns with the intended application bandwidth. Ensure compatibility with existing RF infrastructure regarding impedance and physical mounting constraints.
Selection Notes
Select this component when an eight-section bandpass response is required between 17.2 GHz and 21.2 GHz. The SMA female interface dictates mating cable or fixture compatibility. Consider the 32.659 gram weight for mechanical load assessments in sensitive mounting environments.
Part Context
This part belongs to the Pasternack RF coaxial filters series, categorized under signal conditioning products. It is distinct from highpass variants like the PE87FL1019 and cable assemblies such as the PE38747C-48. The product represents a specialized passive component for microwave frequency management.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify electrical parameters and connector types when evaluating alternative components from other manufacturers.
