Product Detailed Parameters
- Description：6 Section Bandpass Filter With S
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency：17.7GHz Center
- Bandwidth：1GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.551" L x 0.449" W (39.40mm x 11.40mm)
- Height (Max)：0.412" (10.46mm)
Download product information
Overview

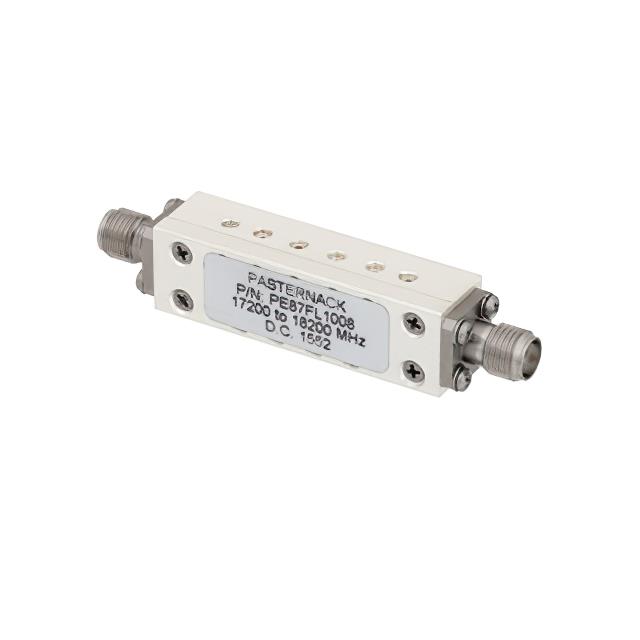

The PE87FL1008 is a six-section bandpass filter manufactured by Pasternack, designed for signal conditioning applications within the RF coaxial filters series. It features SMA female connectors and operates with a passband frequency range from 17.2 GHz to 18.2 GHz, providing a 1000 MHz bandwidth. The unit weighs approximately 32.659 grams and is packaged in bulk quantities of one.
Feature Summary
- Six-section bandpass filter design for precise signal filtering
- SMA female connector interface for standard RF integration
- Operating frequency range centered on 17.2 GHz to 18.2 GHz
Applications
- RF signal conditioning systems
- Microwave communication equipment
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet version for detailed electrical specifications such as insertion loss and return loss before procurement. Confirm that the SMA female connector type matches your system requirements. Check current availability status as distribution may vary by region. Ensure compliance with RoHS directives if required for your project specifications.
Selection Notes
Select this component when a narrow bandpass characteristic around 17.2-18.2 GHz is required. The six-section architecture offers steep roll-off characteristics compared to lower-order filters. Ensure the SMA interface compatibility with existing cabling infrastructure. Consider the physical weight and bulk packaging for mechanical integration planning.
Part Context
This part belongs to the Pasternack RF Coaxial Filters series, specifically categorized under signal conditioning products. It is distinct from highpass or lowpass variants within the same manufacturer lineup. The product is identified by the model number PE87FL1008 and is classified as a new product in some distributor catalogs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Pasternack technical support for cross-reference options if alternative sourcing is necessary.
