PE87FL1009

Overview

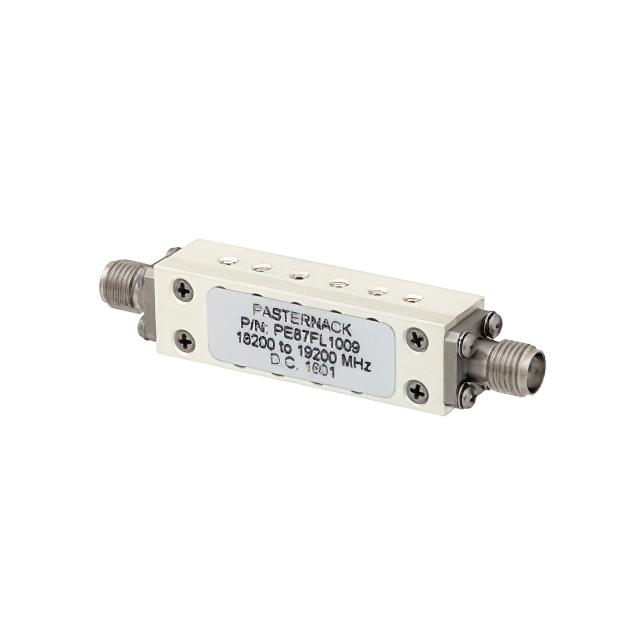

The PE87FL1009 is a six-section bandpass filter manufactured by Pasternack, designed for signal conditioning applications. It operates within a frequency range of 18.2 GHz to 19.2 GHz and features a passband width of 1,000 MHz. The device utilizes SMA female connectors for interface connectivity. This component belongs to the RF Coaxial Filters series and is classified under signal conditioning products.

Feature Summary

• Six-section bandpass filter architecture
• SMA female connector interfaces
• Operating frequency range from 18.2 GHz to 19.2 GHz

Applications

• Signal conditioning systems
• RF coaxial filter circuits
• Frequency selection in microwave applications

Procurement Notes

Verify the specific datasheet version for detailed electrical performance parameters such as insertion loss and return loss before integration. Confirm that the SMA female connector type matches the system requirements. Ensure the operating frequency range aligns with the intended application spectrum. Check for any RoHS compliance documentation if required by project specifications.

Selection Notes

Select this model when a six-section bandpass response is required between 18.2 GHz and 19.2 GHz. The SMA female interface dictates compatibility with mating SMA male components. Consider the physical size and mounting requirements associated with RF coaxial filters in this series. Evaluate if the 1,000 MHz passband width meets the spectral filtering needs of the design.

Part Context

This part is part of the Pasternack RF Coaxial Filters series, categorized under signal conditioning. It is distinct from other models in the series, such as the PE87FL1019 highpass filter or the PE87FL1007 eight-section bandpass filter, by its specific six-section configuration and defined 18.2-19.2 GHz operational window.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
