PE87FL1010

Overview

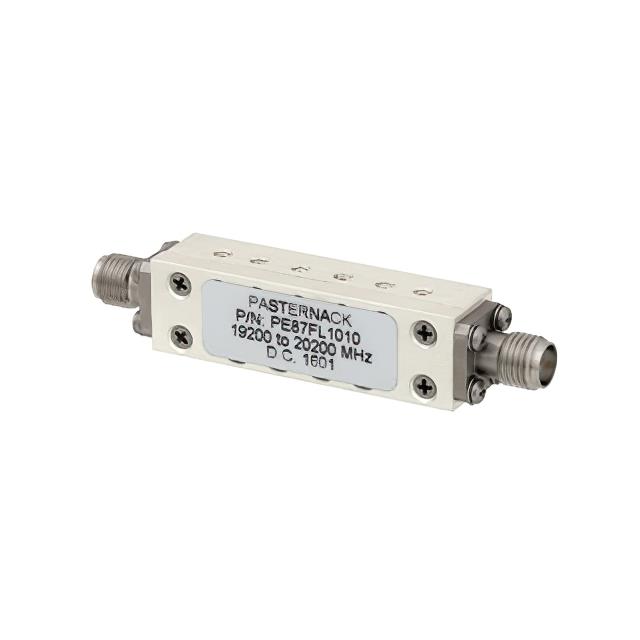

The PE87FL1010 is a six-section bandpass filter manufactured by Pasternack. It operates within a frequency range of 19.2 GHz to 20.2 GHz, providing a passband width of 1,000 MHz with a center frequency of 19.7 GHz. The component features SMA female connectors and exhibits an insertion loss of 1.5 dB. Physically, it measures 1.551 inches in length and 0.449 inches in width (39.40mm x 11.40mm). Designed for chassis mounting, this signal conditioning device supports RF applications requiring precise frequency selection in the K-band spectrum.

Feature Summary

• Six-section bandpass architecture for enhanced selectivity
• SMA female connectors for standard RF interfacing
• Chassis mount design for stable installation

Applications

• K-band communication systems
• Test and measurement instrumentation
• Signal conditioning modules

Procurement Notes

Verify the specific connector type and physical dimensions against your system requirements before ordering. Confirm that the SMA female interface matches your existing cabling infrastructure. Ensure the chassis mounting style is compatible with your enclosure design. Review the datasheet for detailed electrical specifications to validate performance in your intended operating environment.

Selection Notes

Select this model when a 19.7 GHz center frequency with a 1 GHz bandwidth is required. The six-section design offers superior rejection characteristics compared to lower-order filters. Consider the SMA interface compatibility and chassis mounting constraints during system integration planning. Verify power handling capabilities if high-power signals are present in the application path.

Part Context

This component belongs to Pasternack's PE87FL series of RF bandpass filters. The series provides various frequency options for signal conditioning needs. The PE87FL1010 specifically targets the 19.2-20.2 GHz range. Other models in the series cover different bands while maintaining similar construction standards and connector types for consistent system integration.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
