PE87FL1011

Overview

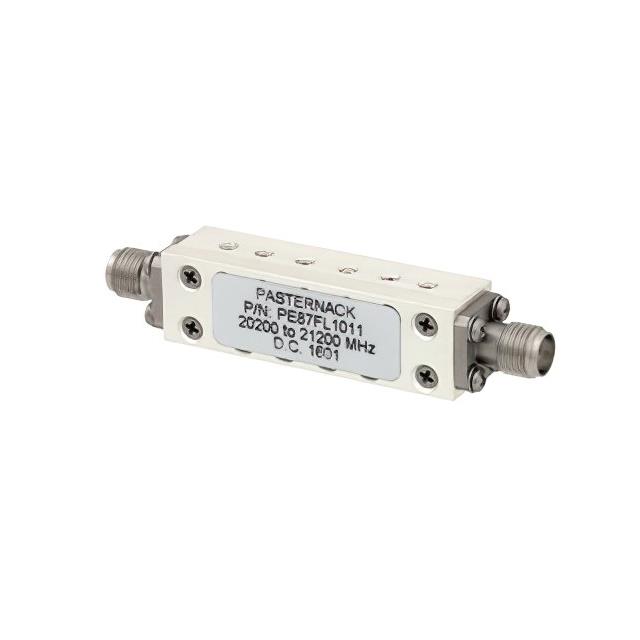

The PE87FL1011 is a six-section bandpass filter manufactured by Pasternack, designed for signal conditioning applications. It operates within a frequency range of 20.2 GHz to 21.2 GHz, providing a passband width of 1000 MHz with a center frequency of 20.7 GHz. The component features SMA female connectors and exhibits an insertion loss of 1.5 dB. Constructed as an RF coaxial filter, it is packaged in bulk and weighs approximately 32.659 grams.

Feature Summary

• Six-section bandpass filter design for precise signal filtering
• SMA female connectors for standard RF interfacing
• Operating frequency range from 20.2 GHz to 21.2 GHz

Applications

• RF signal conditioning systems
• Microwave communication equipment
• Test and measurement instrumentation

Procurement Notes

Verify the exact part number PE87FL1011 against official Pasternack documentation to ensure compatibility with your specific RF system requirements. Confirm connector type and frequency specifications match your design needs before procurement. Check current availability status as distribution may vary by region.

Selection Notes

Select this component when a six-section bandpass response is required between 20.2 GHz and 21.2 GHz. Ensure your system supports SMA female interfaces and can accommodate the specified 1.5 dB insertion loss. Verify that the physical dimensions and weight fit within your assembly constraints.

Part Context

This component belongs to the Pasternack PE87FL series of RF coaxial filters. These filters are engineered for high-performance signal conditioning in microwave frequencies. The series offers various frequency ranges while maintaining consistent connector types and section counts for standardized integration into RF circuits.

Replacement Considerations

Consult Pasternack's official substitution guide for verified equivalent models. Ensure any replacement maintains the six-section architecture, SMA female connectivity, and the 20.2-21.2 GHz operating range to preserve system performance.
