PE87FL1012

Overview

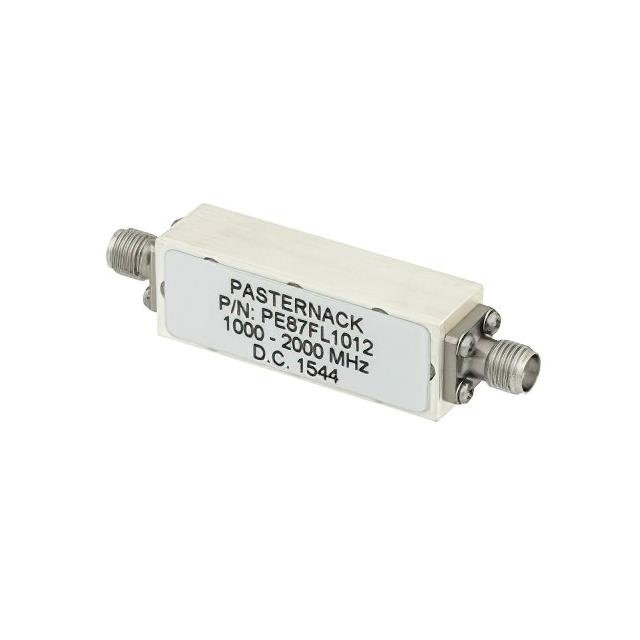

The Pasternack PE87FL1012 is an 11-section bandpass filter designed for signal conditioning applications. It features SMA female connectors and operates within a frequency range of 1 GHz to 2 GHz. The device provides a passband width of 1,000 MHz. Constructed with shape memory alloy connectors utilizing internal threads, the unit weighs approximately 49.442 grams and is packaged in bulk quantities.

Feature Summary

• Utilizes an 11-section design for precise RF filtering
• Incorporates shape memory alloy connectors with internal threading
• Provides specific bandpass characteristics within the 1 GHz to 2 GHz operational range

Applications

• RF signal conditioning systems
• Bandpass filtering in communication infrastructure
• Test and measurement equipment requiring 1-2 GHz isolation

Procurement Notes

Verify the exact datasheet version before integration, as specifications may vary by revision. Confirm connector gender and thread type compatibility with existing assembly hardware. Ensure environmental ratings match operational requirements. Cross-reference part numbers with official Pasternack documentation to avoid substitution errors. Validate performance metrics against specific system constraints prior to deployment.

Selection Notes

Select this component when an 11-section topology is required for steep roll-off characteristics. The SMA interface suits standard laboratory and industrial RF setups. Consider the physical weight and bulk packaging for logistics planning. Evaluate the 1,000 MHz passband width against adjacent channel interference needs. Ensure the operating frequency aligns strictly with the 1 GHz to 2 GHz specification.

Part Context

This model belongs to the Pasternack RF Coaxial Filters series, categorized under Signal Conditioning products. It shares the manufacturer's focus on high-performance RF components with standardized SMA interfaces. The product line emphasizes precision filtering solutions for professional engineering applications.

Replacement Considerations

Consult official Pasternack documentation for verified substitute part numbers. Do not assume cross-compatibility with generic filters due to specific section count and passband requirements.
