PE87FL1014

Overview

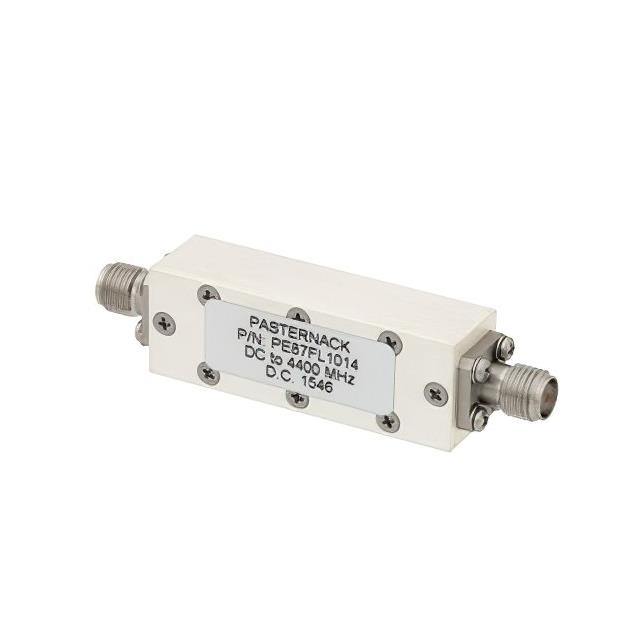

The PE87FL1014 is a thirteen-section low-pass RF filter manufactured by Pasternack. It features SMA female connectors and operates from DC to 4.4 GHz with a 4.4 GHz passband. The unit provides excellent rejection of 50 dB at frequencies between 6 GHz and 12 GHz. It supports a maximum power handling of 10 watts.

Feature Summary

• Thirteen-section low-pass filter design for enhanced signal integrity
• SMA female connectors for standard coaxial integration
• High rejection performance in the stopband region

Applications

• RF signal conditioning modules
• Microwave system filtering
• Communication equipment front-ends

Procurement Notes

Verify connector type compatibility and frequency range requirements against specific application needs. Confirm power handling limits and physical dimensions before integration. Ensure sourcing channels provide authentic manufacturer documentation for quality assurance.

Selection Notes

Select this component when a steep roll-off low-pass characteristic is required up to 4.4 GHz. Consider the SMA interface for easy circuit board or cable assembly integration. Evaluate the 10W power rating against expected signal levels to ensure reliable operation without degradation.

Part Context

This model belongs to the Pasternack RF Coaxial Filters series, categorized under signal conditioning components. It is designed for radio frequency applications requiring precise frequency selection and noise reduction in microwave systems.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
