PE87FL1015

Overview

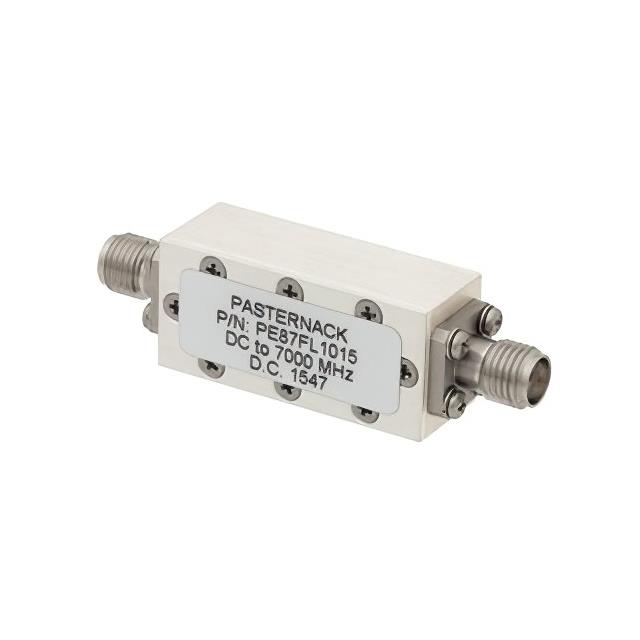

The PE87FL1015 is an 11-section low-pass RF filter manufactured by Pasternack. It features SMA female connectors and operates from DC to 7 GHz, with a passband of 7 GHz and a center frequency of 3.5 GHz. The component exhibits a maximum insertion loss of 1.5 dB and supports a maximum power handling capacity of 6 Watts.

Feature Summary

• Utilizes an 11-section design for effective signal filtering
• Equipped with SMA female connectors for standard interface compatibility
• Provides low insertion loss characteristics within the specified passband

Applications

• Radio frequency signal conditioning
• Microwave system integration
• Test and measurement equipment

Procurement Notes

Verify the specific connector gender and section count against official datasheets before procurement. Confirm RoHS compliance status and exact power ratings for your application requirements. Ensure the SMA interface matches your system architecture to avoid adapter usage.

Selection Notes

Select this component when an 11-section low-pass response is required up to 7 GHz. Consider the 6 Watt power limit and 1.5 dB insertion loss specifications. Verify that SMA female connectors align with your existing interconnect infrastructure.

Part Context

This part belongs to Pasternack's extensive portfolio of RF and microwave components. It is designed for applications requiring precise frequency filtering in radio frequency systems. The product line includes various filters, cables, and adapters for diverse electronic needs.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify electrical parameters such as cutoff frequency and power handling match the original specifications. Ensure connector types remain consistent to maintain physical compatibility.
