PE87FL1019

Overview

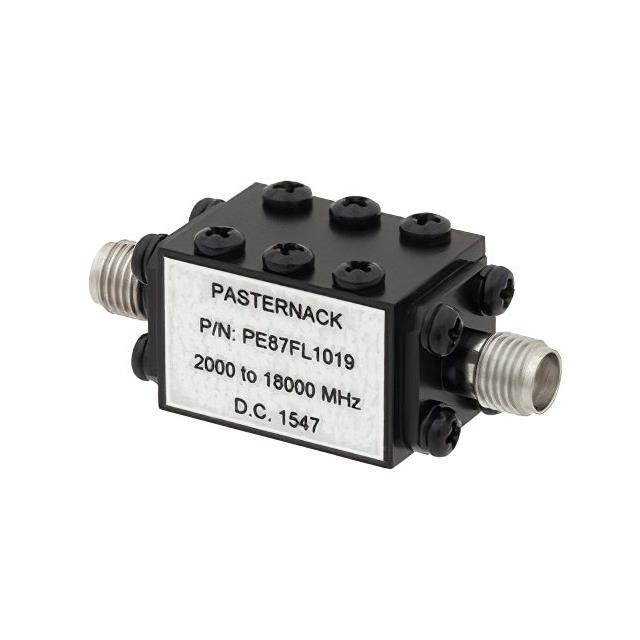

The PE87FL1019 is a seven-section high-pass filter manufactured by Pasternack. It operates within a frequency range of 2 GHz to 18 GHz and features SMA female connectors. The device maintains a 50 Ohm impedance and supports a maximum power handling capacity of 5 Watts. Designed for RF signal conditioning, it provides a passband bandwidth of 16 GHz.

Feature Summary

• Seven-section high-pass filter architecture
• SMA female-to-female connector interface
• 50 Ohm system impedance
• Operates from 2 GHz to 18 GHz

Applications

• RF signal chain filtering
• Signal conditioning modules
• High-frequency communication systems

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm that the SMA female connector type matches your system requirements. Ensure the 5 Watt power rating aligns with your operational signal levels to prevent component damage.

Selection Notes

Select this component when a sharp cutoff high-pass response is required between 2 GHz and 18 GHz. The seven-section design offers superior rejection characteristics compared to simpler topologies. Ensure the SMA interface compatibility with existing cabling and test equipment is validated prior to procurement.

Part Context

This unit belongs to the Pasternack RF Coaxial Filters series. It is categorized under Signal Conditioning products. The manufacturer lists it as a new product in their catalog. The component is packaged in bulk quantities for distribution.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
