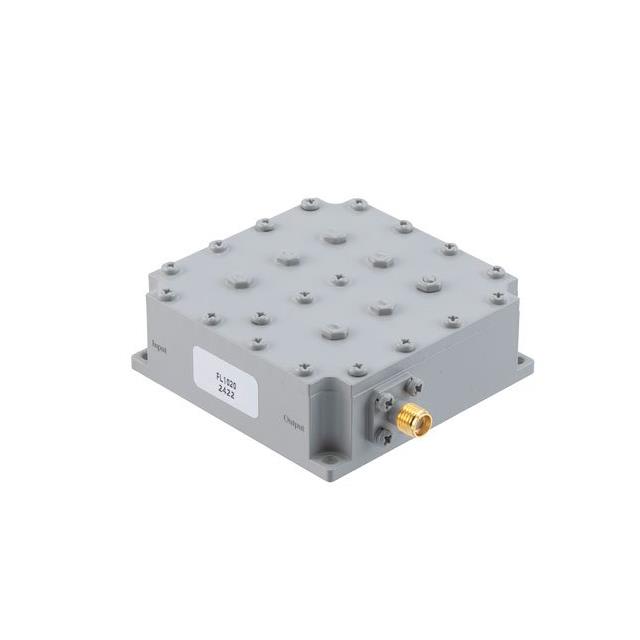

PE87FL1020

$529.52

Description：Bandpass Filter with SMA Female
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:cd66ba437980 Category: RF Filters Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Bandpass Filter with SMA Female
Series：-
Mfr：Pasternack
Package：Retail Package
Frequency：2.442GHz Center
Bandwidth：165MHz
Filter Type：Band Pass
Ripple：0.3dB
Insertion Loss：0.5dB
Mounting Type：Chassis Mount
Package / Case：SMA In line Module
Size / Dimension：2.441" L x 2.441" W (62.00mm x 62.00mm)
Height (Max)：0.941" (23.90mm)

Download product information

PE87FL1020

Overview

The Pasternack PE87FL1020 is a bandpass RF filter designed for wireless communication and test instrumentation applications. It features SMA connectors and operates with a center frequency of 2.442 GHz and a bandwidth of 165 MHz. The component maintains a 50-ohm impedance and utilizes an in-line module package configuration.

Feature Summary

Bandpass filtering capability centered at 2.442 GHz
SMA connector interface for signal transmission
In-line module physical configuration

Applications

Wireless communication systems
Test instrumentation equipment
Antenna testing setups

Procurement Notes

Verify the specific part number PE87FL1020 against official Pasternack documentation to confirm technical specifications. Ensure compatibility with system requirements regarding center frequency, bandwidth, and connector type before procurement. Cross-reference datasheets for accurate electrical parameters.

Selection Notes

Select this component when a bandpass filter with a 2.442 GHz center frequency and 165 MHz bandwidth is required. Consider the SMA connector interface and in-line module form factor for integration into existing RF test or communication infrastructure.

Part Context

This component belongs to the Pasternack PE87FL series of RF filters. The series includes various bandpass filters with different frequency ranges and connector options, catering to diverse microwave and radio frequency application needs within the broader RF components market.

Replacement Considerations

Consult official Pasternack documentation for confirmed substitute part numbers. Verify that any replacement matches the center frequency, bandwidth, impedance, and connector specifications to ensure functional equivalence.
