Product Detailed Parameters

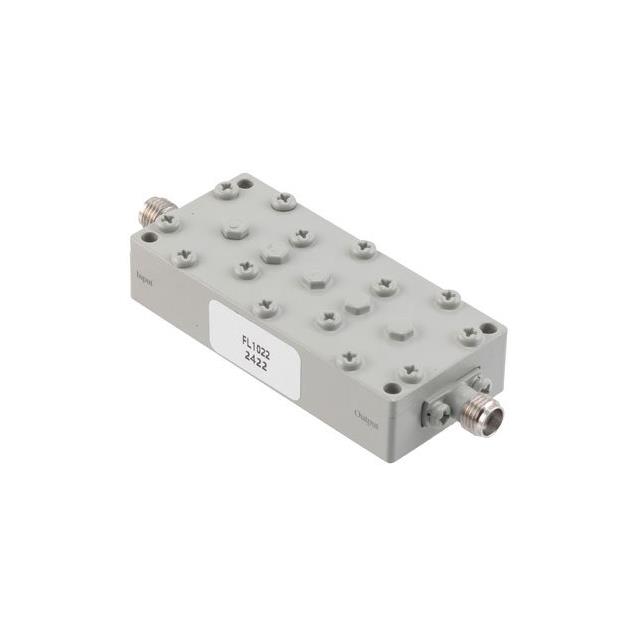

- Description：Bandpass Filter with SMA Female
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency：5GHz Center
- Bandwidth：40MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.8dB
- Mounting Type：Chassis Mount
- Package / Case：SMA In line Module
- Size / Dimension：2.283" L x 1.142" W (58.00mm x 29.00mm)
- Height (Max)：0.591" (15.00mm)
Download product information
Overview
The Pasternack PE87FL1022 is a signal conditioning component classified as an RF coaxial bandpass filter. It operates with a center frequency of 5 GHz and supports a signal bandwidth of up to 40 MHz. The device features SMA female connectors and maintains a 50-ohm impedance. Designed for inline module applications, it facilitates extensive communication range within wireless systems.
Feature Summary
- Employs bandpass filter technology to manage signal frequencies
- Supports signal bandwidth of up to 40 MHz
- Operates at a center frequency of 5 GHz
- Features SMA female connectors for inline integration
Applications
- Wireless communication systems
- Test instrumentation
- Antenna testing
Procurement Notes
Verify the specific datasheet version for the PE87FL1022 to confirm current technical specifications and compliance status. Ensure compatibility with existing 50-ohm system architectures before integration. Confirm connector type and operating frequency requirements match the design parameters. Check for any recent updates to the product lifecycle or manufacturing details.
Selection Notes
Select the PE87FL1022 when a 5 GHz center frequency and 40 MHz bandwidth are required for signal conditioning. The SMA female interface suits standard test and measurement setups. Consider the inline module form factor for space-constrained designs. Verify that the 50-ohm impedance aligns with the surrounding circuitry to minimize signal reflection.
Part Context
This component belongs to the Pasternack PE87FL series of RF coaxial filters. These products are designed for signal conditioning in radio frequency applications. The series typically includes various bandpass configurations tailored for specific frequency ranges and bandwidths, supporting diverse communication and testing needs.
Replacement Considerations
Consult official Pasternack documentation for direct substitutes. Other models in the PE87FL series may offer similar characteristics with different frequency centers or bandwidths. Ensure any replacement maintains the 50-ohm impedance and SMA connector interface for seamless integration.
