PE87FL1023

Overview

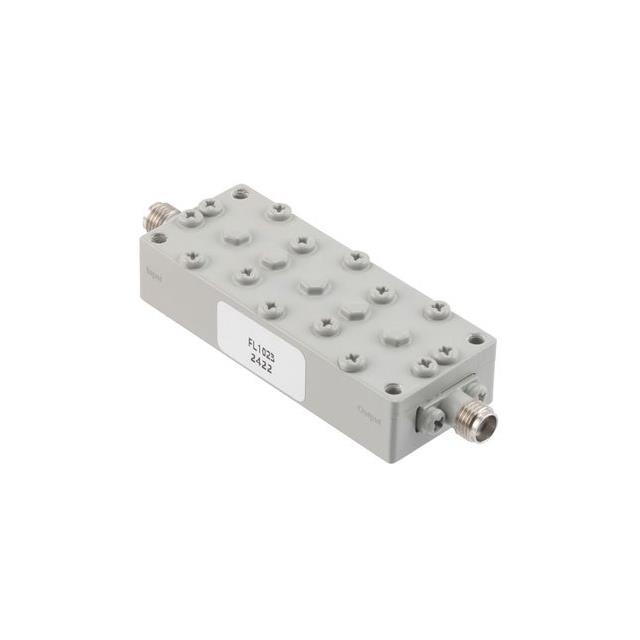

The Pasternack PE87FL1023 is a bandpass RF filter designed for wireless communication, test instrumentation, and antenna testing applications. It features SMA female connectors and operates with a center frequency of 6 GHz. The component provides a bandwidth of 45 MHz and exhibits an insertion loss of 1.8 dB. It maintains a 50-ohm impedance and functions within a temperature range of -20 to 70 degrees Celsius.

Feature Summary

• Provides precise signal conditioning through a defined 45 MHz passband centered at 6 GHz
• Utilizes durable SMA female connectors for reliable in-line module integration
• Engineered for stable operation across standard industrial temperature ranges

Applications

• Wireless communication systems
• Test instrumentation equipment
• Antenna testing setups

Procurement Notes

Verify the specific connector type and impedance requirements against your system design before procurement. Confirm that the operating temperature range meets your environmental conditions. Ensure the center frequency aligns with your signal processing needs. Check for any mechanical constraints regarding the in-line module form factor.

Selection Notes

Select this model when a narrow 45 MHz bandwidth is required around the 6 GHz frequency point. Consider the 1.8 dB insertion loss impact on system gain. Verify compatibility with existing SMA interfaces. Evaluate if the specified temperature range suits the deployment environment.

Part Context

This component belongs to Pasternack's RF filters category, specifically designed as a bandpass filter. It serves as a signal conditioning element within radio frequency circuits. The product is distinct from phase shifters or cable assemblies offered by the same manufacturer.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
