PE87FL1024

Overview

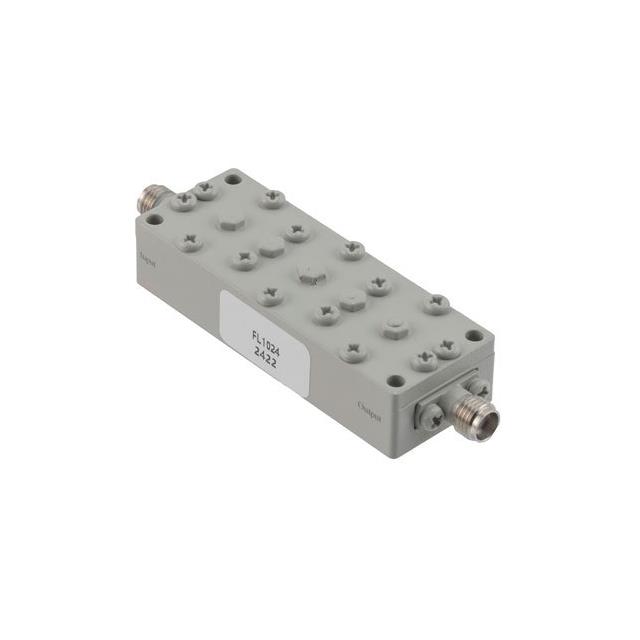

The PE87FL1024 is a bandpass RF filter module manufactured by Pasternack. It operates with an 8 GHz center frequency and features a 40 MHz bandwidth. The component exhibits a typical insertion loss of 1.5 dB. It utilizes SMA female connectors for signal interfacing. The unit is designed for in-line mounting configurations. Operating temperature ranges from -20 to 70 degrees Celsius.

Feature Summary

• Provides selective frequency filtering centered at 8 GHz
• Utilizes SMA female connectors for direct integration
• Designed as a compact in-line module

Applications

• Radio frequency signal conditioning
• Communication system filtering
• Test and measurement equipment

Procurement Notes

Verify the specific model designation against official manufacturer documentation before procurement. Confirm that the SMA connector type and center frequency requirements align with the system design specifications. Ensure environmental operating conditions are within the stated thermal limits. Cross-reference part numbers with authorized distributors to ensure authenticity and traceability.

Selection Notes

Select this component when a fixed 8 GHz center frequency with narrow bandwidth is required. Consider the 1.5 dB insertion loss impact on system gain. Verify compatibility with existing SMA interfaces. Evaluate thermal performance requirements against the specified operating range.

Part Context

This component belongs to the Pasternack RF Coaxial Filters series. It is categorized under signal conditioning products. The device serves as a specialized filter module for radio frequency applications requiring precise frequency selection.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic replacements may not match the specific 8 GHz center frequency or 40 MHz bandwidth requirements.
