PE87FL1025

Overview

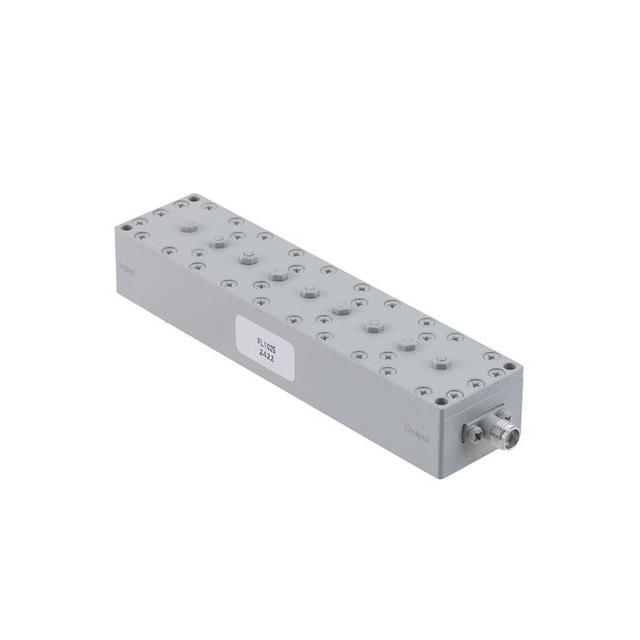

The Pasternack PE87FL1025 is a six-section bandpass filter designed for RF signal conditioning. It operates within a frequency range of 2.985 GHz to 3.025 GHz, providing an 800 MHz passband with a center frequency of 3 GHz. The component features SMA female connectors and maintains a 50-ohm impedance. It exhibits an insertion loss of 2 dB. This inline module is constructed for reliable performance in microwave applications requiring precise frequency selection.

Feature Summary

• Six-section bandpass architecture for enhanced spectral selectivity
• SMA female connector interface for standard RF integration
• 50-ohm impedance matching for system compatibility

Applications

• Wireless communication systems
• Test instrumentation equipment
• Antenna testing setups

Procurement Notes

Verify the specific datasheet version for the PE87FL1025 to confirm exact electrical tolerances and mechanical dimensions prior to integration. Ensure that the SMA connector gender and mating requirements align with the target system design. Cross-reference the manufacturer's documentation for any updates regarding material composition or environmental ratings to guarantee compliance with project specifications.

Selection Notes

Select this component when a narrow bandpass characteristic around 3 GHz is required. The six-section design offers superior rejection compared to simpler topologies. Confirm that the 2 dB insertion loss meets the link budget constraints. Verify that the SMA interface is compatible with existing cabling infrastructure before finalizing the procurement decision.

Part Context

This part belongs to the Pasternack RF Coaxial Filters series. It is categorized under signal conditioning products. The manufacturer specializes in RF and microwave components. This specific model is an inline module intended for use in systems requiring precise frequency filtering at microwave frequencies.

Replacement Considerations

Consult official substitution lists for verified equivalents. Generic filters may not match the six-section topology or specific 2 dB insertion loss requirement. Ensure any replacement maintains the 50-ohm impedance and SMA female connectivity to preserve system integrity.
