PE87FL1026

Overview

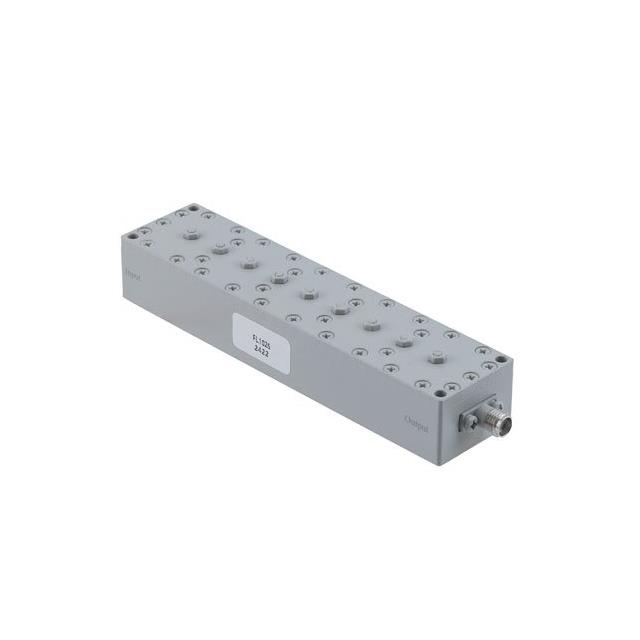

The PE87FL1026 is a bandpass filter from Pasternack's RF coaxial filters series. It operates with SMA female connectors and maintains a 50-ohm impedance. The device features a center frequency of 3.5 GHz, a bandwidth of 45 MHz, an insertion loss of 2 dB, and a ripple of 0.8 dB.

Feature Summary

• Provides signal conditioning through bandpass filtering capabilities
• Designed for wireless communication environments
• Suitable for test instrumentation applications
• Optimized for antenna testing procedures

Applications

• Wireless communication systems
• Test instrumentation setups
• Antenna testing configurations

Procurement Notes

Verify the specific electrical parameters against the official datasheet before integration. Confirm connector polarity and impedance requirements match the system design. Ensure environmental ratings align with operational conditions. Check for any recent revisions to the component specifications that may affect compatibility.

Selection Notes

Select this component when a narrow 45 MHz bandwidth centered at 3.5 GHz is required. Consider the 2 dB insertion loss impact on system gain. Verify SMA connector compatibility with existing infrastructure. Evaluate if the 0.8 dB ripple meets signal integrity standards for the specific application.

Part Context

This part belongs to the Pasternack RF coaxial filters family. It is categorized under signal conditioning products. The unit weight is not explicitly stated in the provided source data for this specific model, though similar units vary. It is distinct from cable assemblies and attenuators within the manufacturer's portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or updated models.
