PE87FL1029

Overview

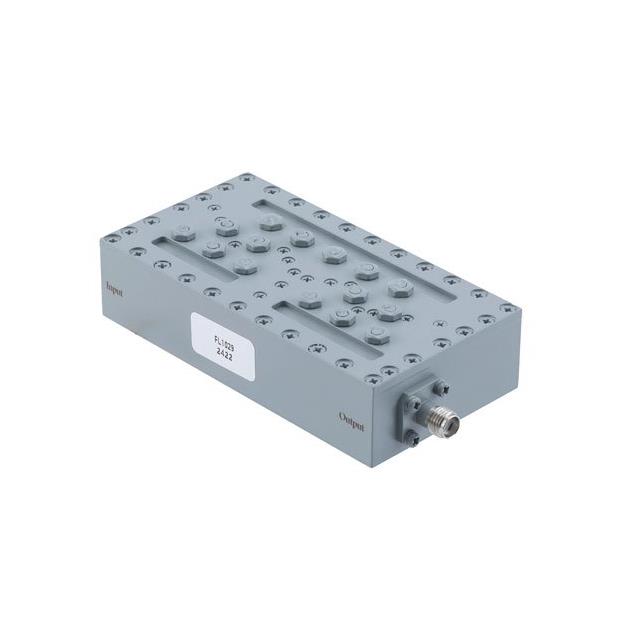

The PE87FL1029 is an eight-section bandpass filter manufactured by Pasternack, designed for RF signal conditioning. It features SMA female connectors and operates with a center frequency of 2.6 GHz. The device provides a bandwidth of 235 MHz and maintains a system impedance of 50 ohms. This inline module is engineered to deliver precise frequency selection within microwave applications.

Feature Summary

• Eight-section bandpass architecture for enhanced spectral selectivity
• SMA female connector interface for standard RF integration
• Optimized for low insertion loss in critical signal paths

Applications

• Wireless communication systems
• Test instrumentation equipment
• Antenna testing setups

Procurement Notes

Verify the specific model number against official Pasternack documentation to ensure compatibility with your system requirements. Confirm connector types and impedance specifications match your design needs before procurement. Check current availability through authorized distributors as lead times may vary based on production schedules.

Selection Notes

Select this component when high-order filtering is required for narrowband applications around 2.6 GHz. Ensure your system supports SMA female interfaces and 50-ohm impedance matching. Consider the physical size and mounting requirements for integration into test or communication hardware.

Part Context

This part belongs to Pasternack's RF Coaxial Filters series, specifically designed for signal conditioning. It complements other bandpass filters in the catalog that offer varying frequency ranges and section counts for diverse RF engineering needs.

Replacement Considerations

Consult Pasternack technical support for verified substitute part numbers if this specific model is unavailable. Cross-reference electrical parameters such as center frequency, bandwidth, and impedance to ensure functional equivalence in your application.
