Product Detailed Parameters
- Description：Bandpass Filter with SMA Female
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Frequency：2.95GHz Center
- Bandwidth：2GHz
- Filter Type：Band Pass
- Ripple：0.8dB
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：SMA In line Module
- Size / Dimension：3.071" L x 1.299" W (78.00mm x 33.00mm)
- Height (Max)：0.488" (12.40mm)
Download product information
Overview

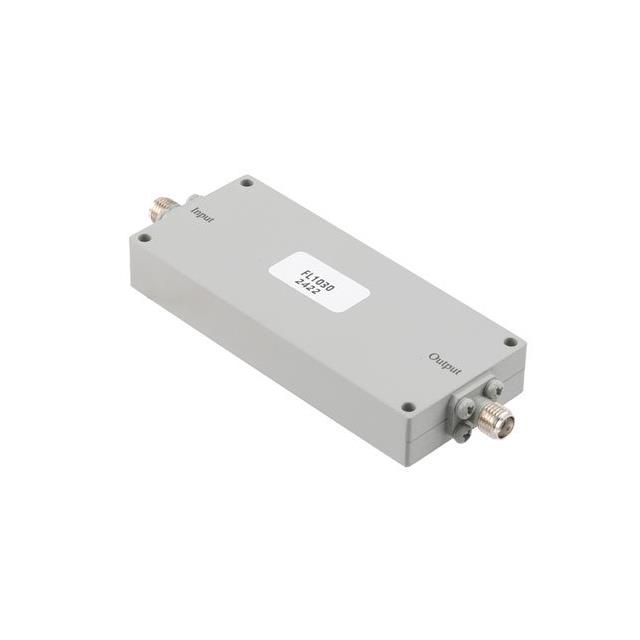

The PE87FL1030 is a bandpass RF filter manufactured by Pasternack, designed for signal conditioning applications. It features SMA female connectors and operates with a 50-ohm impedance. The component functions within a frequency range centered at 2.95 GHz, providing a bandwidth of 2 GHz. This inline module is engineered to support wireless communication systems, test instrumentation setups, and antenna testing environments.
Feature Summary
- Provides selective frequency filtering through a bandpass configuration
- Utilizes SMA female connectors for standardized interface compatibility
- Maintains 50-ohm system impedance for signal integrity
Applications
- Wireless communication systems
- Test instrumentation
- Antenna testing
Procurement Notes
Verify the specific part number PE87FL1030 against official Pasternack documentation to confirm connector type and frequency specifications. Ensure compatibility with existing SMA interfaces in your design. Cross-reference datasheets for precise electrical parameters before integration. Confirm RoHS compliance status if required by your manufacturing standards.
Selection Notes
Select this component when a bandpass filter centered at 2.95 GHz with a 2 GHz bandwidth is required. It is suitable for designs needing SMA female connections and 50-ohm impedance matching. Consider its use in wireless and test applications where specific frequency isolation is necessary.
Part Context
This model belongs to the Pasternack RF Coaxial Filters series. It is categorized under signal conditioning products. The unit weight is approximately 49.442 grams. It is packaged in bulk quantities.
FAQ
What is the center frequency of the PE87FL1030?
The center frequency is 2.95 GHz.
What type of connectors does this filter use?
It uses SMA female connectors.
