PE88D1001

Overview

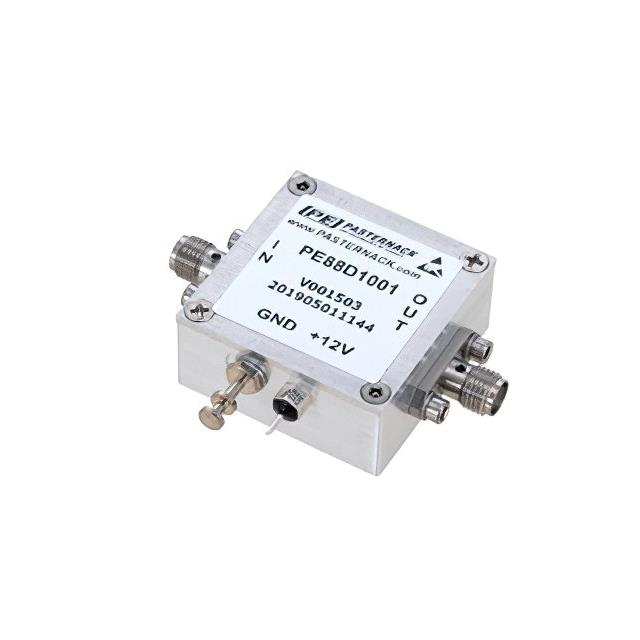

The PE88D1001 is a general-purpose RF frequency divider module manufactured by Pasternack. It functions as a divide-by-10 prescaler, accepting input signals within a frequency range of 100 MHz to 12.5 GHz. The component utilizes SMA connectors for interface connectivity and is designed for integration into broader electronic systems requiring precise frequency division.

Feature Summary

• Provides divide-by-10 frequency division functionality
• Operates across a wide bandwidth from 100 MHz to 12.5 GHz
• Features SMA connector interfaces for signal transmission

Applications

• RF signal processing systems
• Frequency synthesis applications
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and technical specifications directly with Pasternack or authorized distributors before procurement. Confirm that the SMA connector type and frequency range requirements align with your system design. Ensure compliance with relevant electromagnetic compatibility standards for your intended application environment.

Selection Notes

Select this module when a divide-by-10 prescaler is required for frequencies up to 12.5 GHz. Consider the SMA interface compatibility with existing circuitry. Evaluate thermal management needs based on the power consumption characteristics defined in the official documentation. Ensure the operating temperature range meets your environmental constraints.

Part Context

This component belongs to Pasternack's line of RF integrated circuits and modules. It serves as a specialized building block for high-frequency signal generation and analysis. The module integrates frequency division capabilities into a compact form factor suitable for various electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
