PE88D2004

Overview

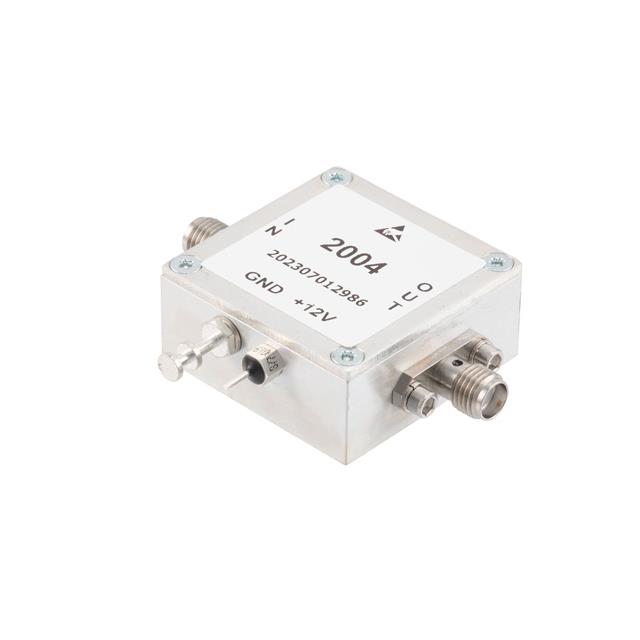

The Pasternack PE88D2004 is a divide-by-2 prescaler frequency divider module designed for high-frequency signal processing applications. It operates within a frequency range of 100 MHz to 24 GHz, providing precise frequency division capabilities essential for test and measurement systems. The unit features a 50 Ohm impedance system to ensure optimal signal transmission and minimal reflection. Connectivity is established through threaded SMA female connectors on both input and output ports, facilitating secure integration into standard RF test setups.

Feature Summary

• Implements divide-by-2 frequency division functionality for signal processing
• Operates across a wide frequency spectrum from 100 MHz to 24 GHz
• Maintains a consistent 50 Ohm system impedance for signal integrity
• Utilizes threaded SMA female connectors for reliable interface connection

Applications

• Frequency synthesis systems requiring precise division ratios
• High-frequency test and measurement instrumentation
• Wireless communication equipment development and validation
• Signal conditioning modules in RF testing environments

Procurement Notes

Verify the specific datasheet version and technical specifications directly with Pasternack or authorized distributors before procurement. Confirm that the SMA connector type and 50 Ohm impedance align with your system requirements. Ensure compliance with relevant electromagnetic compatibility standards for your intended application environment.

Selection Notes

Select this module when a dedicated divide-by-2 prescaler is required for frequencies up to 24 GHz. Consider the SMA interface compatibility with existing cabling and fixtures. Evaluate the thermal management needs if operating continuously at upper frequency limits. Verify power supply requirements and control signals if applicable to the specific module configuration.

Part Context

This component belongs to Pasternack's line of signal conditioning modules, specifically targeting frequency division needs. It serves as a critical building block in complex RF chains where frequency scaling is necessary. The module integrates passive and active components to achieve stable performance across its specified bandwidth, supporting various industrial and scientific applications.

Replacement Considerations

Consult Pasternack technical support for verified substitute part numbers. Ensure any replacement maintains the 100 MHz to 24 GHz operational range and 50 Ohm impedance. Verify mechanical compatibility with SMA female connectors and mounting requirements.
