PE88D4004

Overview

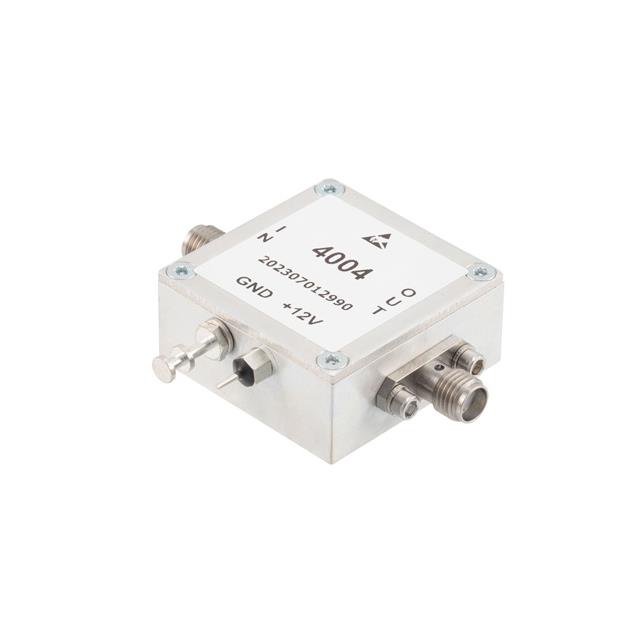

The PE88D4004 is a divide-by-4 prescaler frequency divider module manufactured by Pasternack. It operates within a frequency range of 100 MHz to 24 GHz and features SMA female connectors with a 50 Ohm impedance. This signal conditioning component is designed for precise frequency division applications in RF systems.

Feature Summary

• Divides input frequency by four
• Operates from 100 MHz to 24 GHz
• Features SMA female connectors
• Maintains 50 Ohm impedance

Applications

• RF signal conditioning
• Frequency synthesis systems
• Test and measurement equipment

Procurement Notes

Verify the specific SMA connector type and impedance requirements against your system design before procurement. Confirm that the operating frequency range of 100 MHz to 24 GHz aligns with your application needs. Ensure compatibility with existing signal levels and interface standards.

Selection Notes

Select this module when a divide-by-4 function is required within the specified frequency band. Consider the SMA interface for integration into standard RF setups. Evaluate the 50 Ohm impedance match for minimal reflection in your transmission line environment.

Part Context

This component belongs to Pasternack's signal conditioning product line, specifically focusing on frequency dividers. It serves as a critical element in systems requiring frequency reduction or synthesis, providing a reliable solution for high-frequency signal processing tasks.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
