PE88D7000

Overview

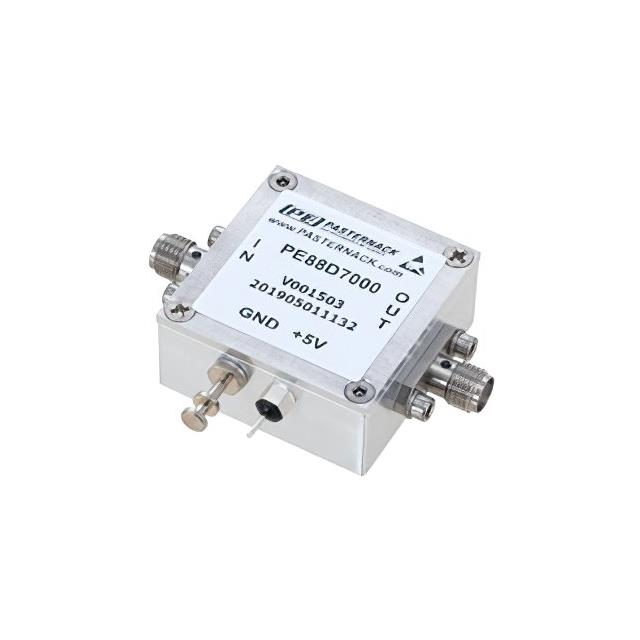

The PE88D7000 is a coaxial packaged frequency divider module manufactured by Pasternack. It functions as a divide-by-7 prescaler designed for general-purpose applications. The device operates across a wide input frequency range from 100 MHz to 15 GHz. It utilizes SMA connectors for interface connectivity. This component is categorized under RF IC Frequency Dividers and is intended for signal conditioning within radio frequency systems.

Feature Summary

• Provides divide-by-7 frequency division functionality
• Operates across a broad microwave frequency spectrum
• Features coaxial packaging with SMA connectors

Applications

• General-purpose frequency division in RF circuits
• Signal conditioning modules
• Microwave system prescalers

Procurement Notes

Verify the specific datasheet version and connector orientation before procurement. Confirm that the SMA interfaces match your system requirements. Ensure the operating frequency range aligns with your application needs. Check for any specific handling instructions regarding the coaxial package integrity during installation.

Selection Notes

Select this component when a divide-by-7 ratio is required within the 100 MHz to 15 GHz range. Consider the coaxial form factor for integration into existing RF test or measurement setups. Evaluate the SMA connector compatibility against your interconnect infrastructure. Compare performance metrics against other Pasternack dividers if different ratios are needed.

Part Context

This part belongs to Pasternack's portfolio of RF and microwave components, specifically within the frequency divider category. It complements their broader range of signal conditioning devices and cable assemblies. The product line focuses on providing reliable solutions for wireless and communication systems requiring precise frequency manipulation.
