PE88X2000

Overview

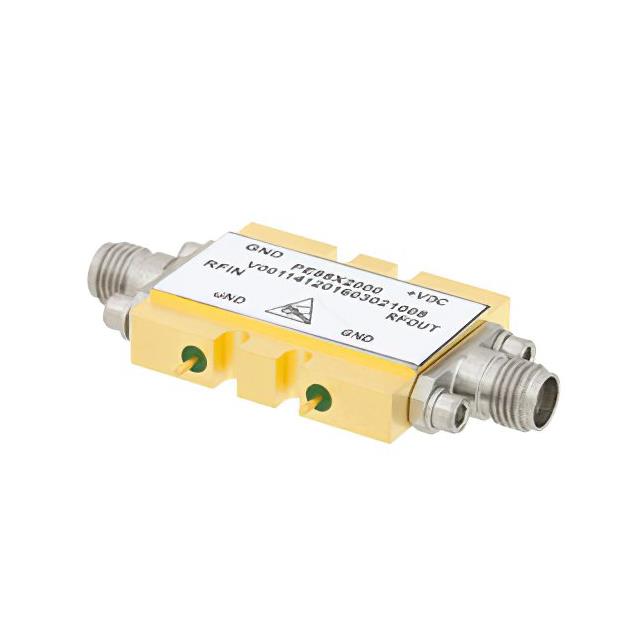

The PE88X2000 is a coaxial RF frequency multiplier module manufactured by Pasternack. It operates with a 50 Ohm impedance and utilizes 2.92mm connectors for signal interfacing. The device functions as a double frequency multiplier, providing an output frequency range of 18 GHz to 29 GHz. It delivers an output power level of +11 dBm within this operational band. This component is designed for integration into microwave systems requiring precise frequency generation.

Feature Summary

• Provides dual frequency multiplication functionality
• Operates within the 18 GHz to 29 GHz output spectrum
• Features 2.92mm connector interface for high-frequency stability

Applications

• Microwave communication systems
• Signal generation modules
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet documentation for the PE88X2000 to confirm detailed electrical characteristics and mechanical dimensions. Ensure that the input frequency requirements align with the module's doubling specifications before integration. Confirm connector compatibility and environmental operating limits against system design parameters.

Selection Notes

Select the PE88X2000 when a compact solution for generating 18-29 GHz signals from lower input frequencies is required. Consider the 2.92mm interface for applications demanding high-frequency performance and low VSWR. Evaluate the +11 dBm output power capability against system loss budgets and receiver sensitivity requirements.

Part Context

This component belongs to Pasternack's series of RF coaxial frequency multipliers. These modules are engineered to convert lower input frequencies to higher output bands using nonlinear elements. The PE88X2000 specifically targets the millimeter-wave region, offering a robust alternative to discrete multiplier circuits in space-constrained designs.
