PE88X2011

Overview

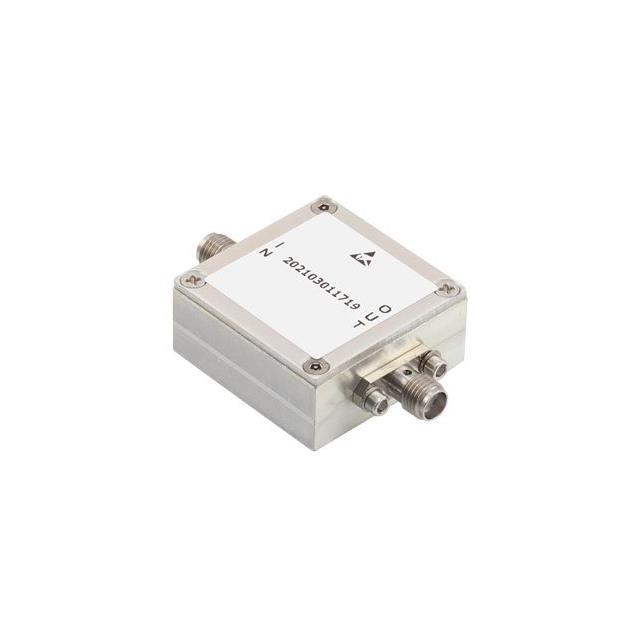

The PE88X2011 is a coaxial frequency multiplier manufactured by Pasternack, designed for RF applications. It functions as a frequency doubler with an input frequency range of 900 MHz to 1.8 GHz and an output frequency range of 1.8 GHz to 4.0 GHz. The device features SMA connectors and operates at a characteristic impedance of 50 Ohms. It exhibits a conversion loss of 14 dB. This component is classified as a general-purpose RF IC frequency multiplier.

Feature Summary

• Provides frequency doubling functionality within specified RF ranges
• Utilizes SMA connector interfaces for integration
• Maintains 50 Ohm system impedance compatibility

Applications

• General purpose RF signal generation
• Frequency synthesis systems
• Wireless communication equipment testing

Procurement Notes

Verify current availability status as the part may be discontinued. Confirm technical specifications against official datasheets before integration. Ensure SMA connector compatibility with existing system interfaces. Check for updated replacement models if this unit is no longer in production. Validate regulatory compliance requirements for your specific deployment region.

Selection Notes

Select this component when a fixed 2x multiplication ratio is required between 900 MHz and 1.8 GHz inputs. Consider the 14 dB conversion loss impact on system power budget. Ensure the output frequency range up to 4.0 GHz aligns with downstream receiver or transmitter capabilities. Verify that SMA connectors meet mechanical and electrical interface standards.

Part Context

This component belongs to Pasternack's RF and Wireless product line, specifically categorized under frequency multipliers. It serves as a passive or active RF module depending on internal architecture, providing harmonic generation for frequency translation tasks in microwave and radio frequency circuits.

Replacement Considerations

Public sources indicate this product is discontinued. No specific substitute part numbers are confirmed in the provided documentation. Users should consult manufacturer catalogs for equivalent frequency doublers with matching SMA interfaces and 50 Ohm impedance.
